M-Press Stainless Steel 316 Press Fit Ball Valve
| Brand: | M-Press Fittings |
|---|---|
| SKU: | 66V.GPMS600 |
£13.04 – £83.49 ex. VAT
About this product

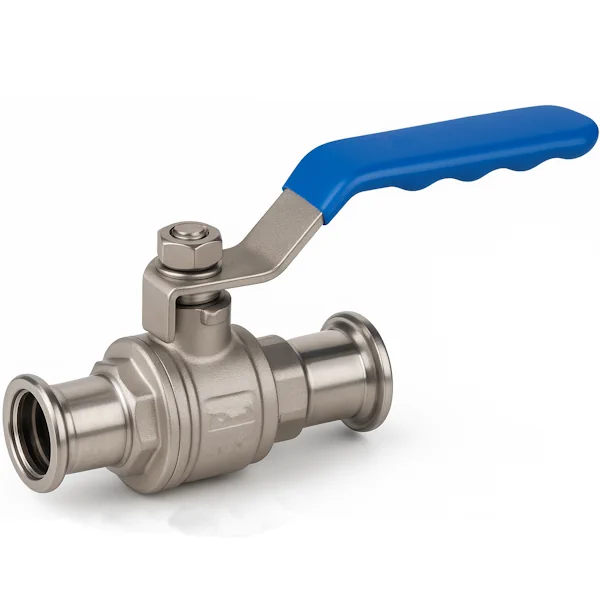

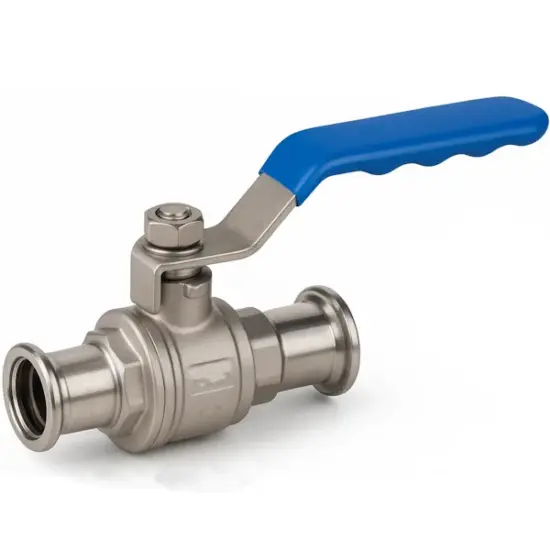

M-Press Stainless Steel 316 Press Fit Ball Valve
This high-performance 2-piece ball valve from M-Press is designed for secure, leak-free installation in press fit systems. Manufactured from durable 316L stainless steel, it features M-profile press ends and a manually operated lever handle for reliable shut-off and flow control. Ideal for use in potable water systems, this WRAS-approved valve is fitted with robust PTFE seats, seals, and gaskets, plus EPDM press O-rings for long-term sealing integrity. Suitable for a wide range of applications, it’s suitable for up to 16 bar pressure and a temperatures in the range of -10°C to 110°C.
Key Features:
- Sizes: 15mm – 54mm
- 316L stainless steel body, ball, stem, and nut
- M-profile press fit connections
- PTFE seals and seats; EPDM press O-rings
- WRAS approved for potable water use
- Maximum pressure: 16 bar
- Temperature range: -10°C to 110°C
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | |
| Valve Type | 2-Piece Ball Valve |
| Connections | M-Profile Press Fit |
| Operation | Manual Lever/Handle Operated |
| Body Material | Stainless Steel 316L |
| Ball Material | Stainless Steel 316L |
| Stem Material | Stainless Steel 316L |
| Packing Nut Material | Stainless Steel 316L |
| Body Gasket Material | PTFE |
| Ball Seat Material | PTFE |
| Stem O-Ring Material | PTFE |
| Stem Packing Material | PTFE |
| Press O-Rings | EPDM |
| Maximum Operating Pressure | 16 Bar |
| Approvals | WRAS Approved (Potable Water) |
| Operating Temperature Range | -10°C – 110°C |
| Certification Availability | N/A |
