M-Press Brass Ball Valve (Dual Butterfly Handle Kit)
| Brand: | M-Press Fittings |
|---|---|
| SKU: | 66V.GP600PP-BF |
£7.48 – £17.75 ex. VAT
About this product

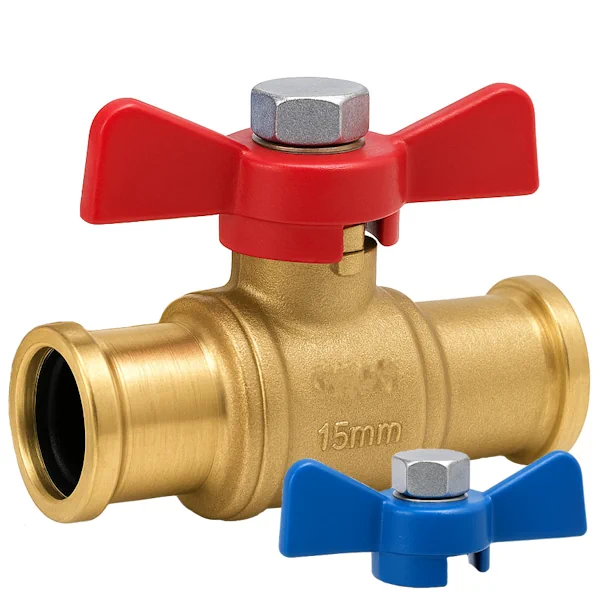

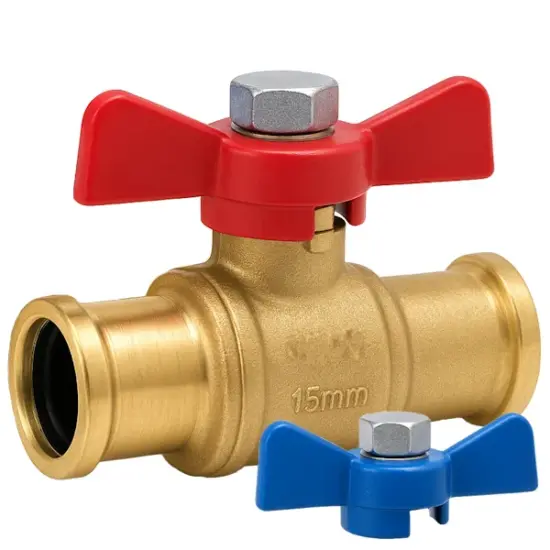

M-Press Brass 2-Piece Press Fit Ball Valve – Dual Colour Butterfly Handles
The M-Press 2-piece brass press fit ball valve is WRAS approved and designed for use in potable water systems. This version comes complete with two interchangeable butterfly handles – one red and one blue – offering clear visual identification for hot and cold water installations. Manufactured from high-quality CW511L and CW617N brass and sealed with durable PTFE components, this valve delivers dependable shut-off performance. M-profile press fit and female BSP threaded ends allow for quick, secure, and solder-free connections.
Key Features:
- Sizes: 15mm – 28mm
- Brass body and ball (CW511L), brass stem and packing nut (CW617N)
- M-profile press fit connections for quick, secure installation
- Dual butterfly handle kit (red & blue) for hot/cold identification
- PTFE seals and seats, EPDM press O-rings
- WRAS approved for potable water systems
- Maximum pressure: 16 bar. Temperature range: -10°C to 110°C
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | |
| Valve Type | 2-Piece Ball Valve |
| Connections | M-Profile Press Fit |
| Operation | Manual Butterfly Handle Operated |
| Body Material | CW511L Brass |
| Ball Material | CW511L Brass |
| Stem Material | CW617N Brass |
| Packing Nut Material | CW617N Brass |
| Body Gasket Material | PTFE |
| Ball Seat Material | PTFE |
| Stem O-Ring Material | PTFE |
| Stem Packing Material | PTFE |
| Press O-Rings | EPDM |
| Maximum Operating Pressure | 16 Bar |
| Approvals | WRAS Approved (Potable Water) |
| Operating Temperature Range | -10°C – 110°C |
| Additional Information | Dual handle kit includes red and blue handles |
| Certification Availability | N/A |
