About this product

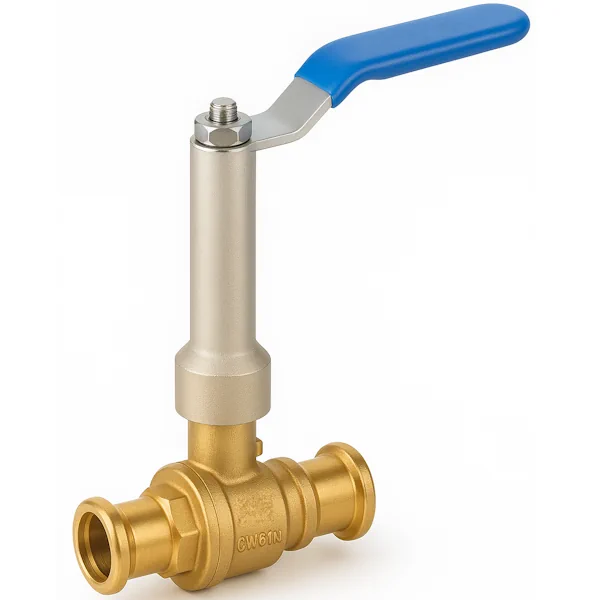

M-Press Brass Press Fit Ball Valve – High Handle
This M-Press 2-piece brass ball valve features a high lever handle, offering improved clearance and easier operation in tighter or insulated installations. Designed for use with M-profile press fittings, it provides a fast, secure, and solder-free connection ideal for modern plumbing systems. Manufactured from high-quality CW511L brass with CW617N components, this valve is WRAS approved for use with potable water. PTFE seals and EPDM press O-rings ensure reliable sealing performance, while the high handle design enhances accessibility without compromising strength or durability.
Key Features:
- Sizes: 15mm – 54mm
- High handle design for improved clearance and accessibility
- Brass body and ball (CW511L), brass stem and packing nut (CW617N)
- M-profile press fit connections for quick, secure installation
- PTFE seals and seats, EPDM press O-rings
- WRAS approved for potable water systems
- Maximum pressure: 16 bar. Temperature range: -10°C to 110°C
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | |
| Valve Type | 2-Piece Ball Valve |
| Connections | M-Profile Press Fit |
| Operation | Manual Lever/Handle Operated |
| Body Material | CW511L Brass |
| Ball Material | CW511L Brass |
| Stem Material | CW617N Brass |
| Packing Nut Material | CW617N Brass |
| Body Gasket Material | PTFE |
| Ball Seat Material | PTFE |
| Stem O-Ring Material | PTFE |
| Stem Packing Material | PTFE |
| Press O-Rings | EPDM |
| Maximum Operating Pressure | 16 Bar |
| Approvals | WRAS Approved (Potable Water) |
| Operating Temperature Range | -10°C – 110°C |
| Certification Availability | N/A |
