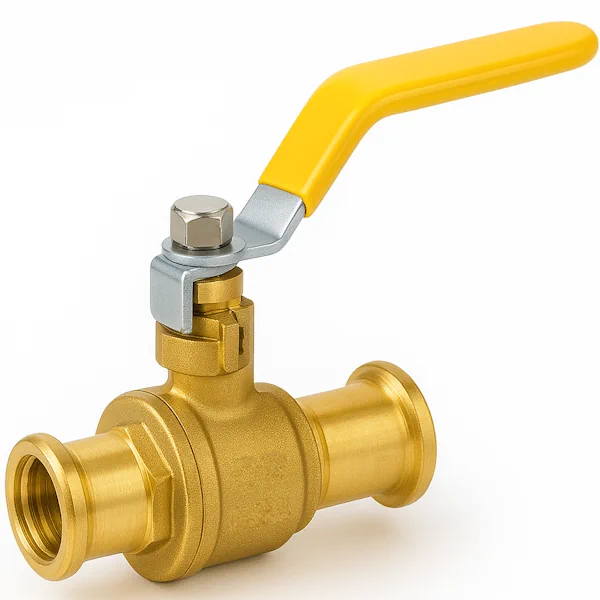

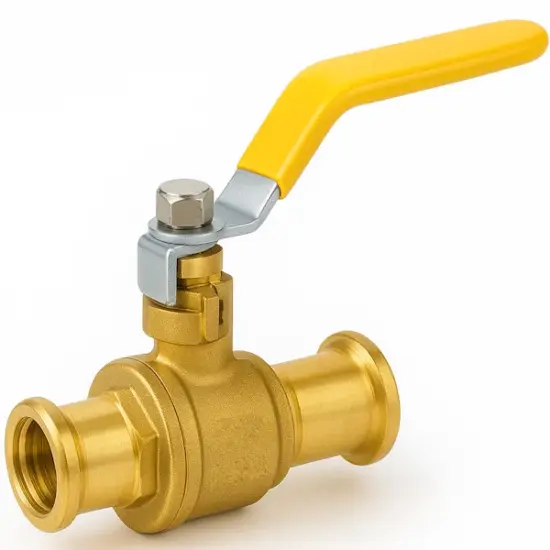

M-Press M profile press fit 2-piece brass ball valve with HNBR seals and PN5 rating for gas

M-Press Brass Press Fit Gas Ball Valve

Brand: M-Press Fittings
SKU: 66V.GPG600PP

Price range: £6.37 through £53.44 ex. VAT

About this product

M-Press Brass 2-Piece Press Fit Gas Ball Valve

The M-Press 2-piece brass press fit ball valve is DVGW approved and designed for use in natural gas and LPG systems. This version is manufactured using high-quality CW511L and CW617N brass and sealed with durable PTFE components, this valve delivers dependable shut-off performance. M-profile press fit ends allow for quick, secure, and solder-free connections.

Key Features:

  • Sizes: 15mm – 54mm
  • Brass body and ball (CW511L), brass stem and packing nut (CW617N)
  • M-profile press fit connections for quick, secure installation
  • Yellow butterfly handle for easy gas service identification
  • PTFE seals and seats, HNBR press O-rings
  • DVGW approved for gas systems
  • Maximum pressure: 5 bar. Temperature range: -20°C to 70°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

2-Piece Ball Valve
Connections

M-Profile Press Fit
Operation

Manual Lever/Handle Operated
Body Material

CW511L Brass
Ball Material

CW511L Brass
Stem Material

CW617N Brass
Packing Nut Material

CW617N Brass
Body Gasket Material

PTFE
Ball Seat Material

PTFE
Stem O-Ring Material

PTFE
Stem Packing Material

PTFE
Press O-Rings

HNBR
Maximum Operating Pressure

5 Bar
Approvals

DVGW Approved (Gas)
Operating Temperature Range

-20°C – 70°C
Certification Availability

N/A
