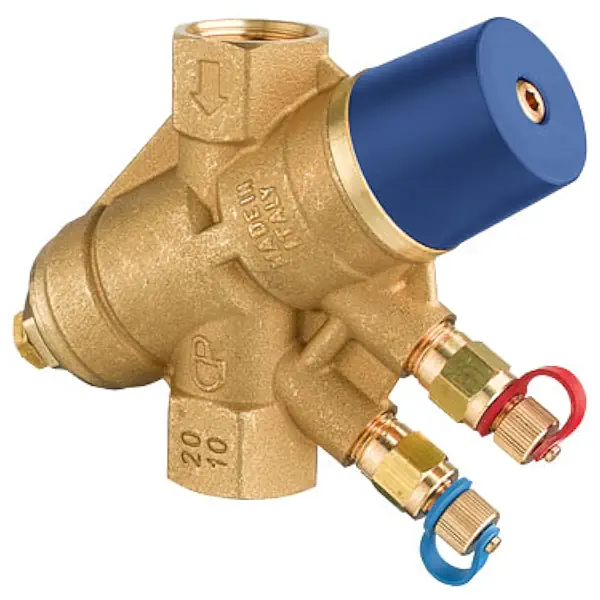

Albion Art24 Brass Differential Pressure Control Valve

Albion Art24 PN16 Brass Differential Pressure Control Valve

The Albion Art24 is a compact and efficient differential pressure control valve (DPCV) designed to maintain a consistent differential pressure across terminal units or sub-circuits. Constructed from corrosion-resistant CW602N-M DZR brass, it is suitable for HVAC and hydronic balancing applications. This valve is intended for use with the Albion Art28DP partner valve, which is supplied separately.

Available in sizes from 1/2″ to 2″ NB with both low and high flow versions, the Art24 includes two DZR brass binder test points and a 1m copper capillary tube for precise monitoring and control. It features female BSPP parallel threaded ends to ISO 228/1, EPDM seals, and conforms to BS 7350 and BS 5154. Rated for 16 bar at up to 100°C, the valve operates within a temperature range of -10°C to 120°C and has a maximum differential pressure of 4 bar.

Key Features:

• CW602N-M DZR brass body with EPDM seals
• Female BSPP threaded ends to ISO 228/1
• Includes two binder test points and 1m copper capillary tube
• Available in low and high flow versions (1/2″ – 2″ NB)
• Conforms to BS 7350 and BS 5154
• Pressure rated to PN16 (16 bar at up to 100°C)
• Maximum differential pressure: 4 bar
• Operating temperature range: -10°C to 120°C
• 5-year manufacturer’s guarantee

Ideal for maintaining stable differential pressure in HVAC systems, ensuring balanced flow and improving energy efficiency when used with the Albion Art28DP partner valve.
