Albion Art28DP DZR Brass Partner Valve

Albion Art28DP PN16 Brass Partner Valve

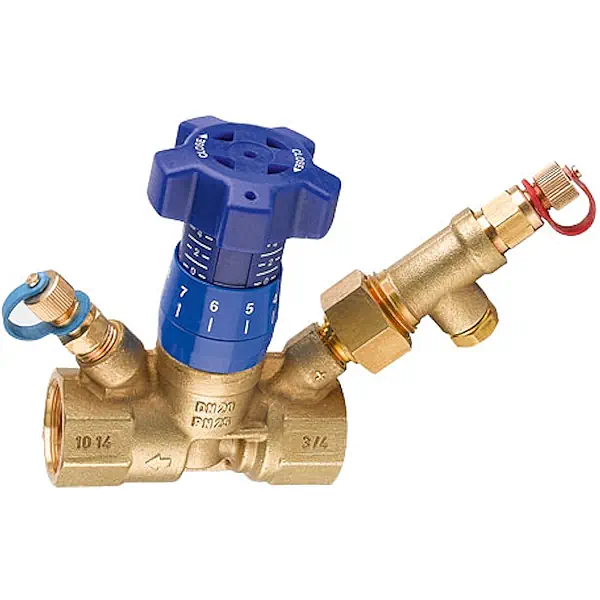

The Albion Art28DP is a DZR brass partner valve designed for use with the Art24 and Art24C differential pressure control valves. It connects via a copper capillary tube (not included) to help maintain constant differential pressure across a circuit or control valve, improving system stability and efficiency.

This valve features a robust brass body with female BSPT taper threaded ends to ISO 7/1 and includes two brass binder test points. It also offers a manual handwheel shut-off function with a 360-degree graduated readout for accurate positioning. The Art28DP conforms to BS 7350 and BS 5154 standards, is PN16 rated, and operates across a temperature range of -10°C to 120°C.

Key Features:

• DZR brass construction
• Female BSPT threaded ends (ISO 7/1)
• Compatible with Albion Art24 and Art24C DPCVs
• Includes two brass binder test points
• Handwheel shut-off with 360° position indicator
• Conforms to BS 7350 & BS 5154 standards
• PN16 pressure rated
• Operating temperature range: -10°C to 120°C

Used in conjunction with a differential pressure control valve to ensure stable, efficient flow regulation in HVAC and hydronic balancing systems.
