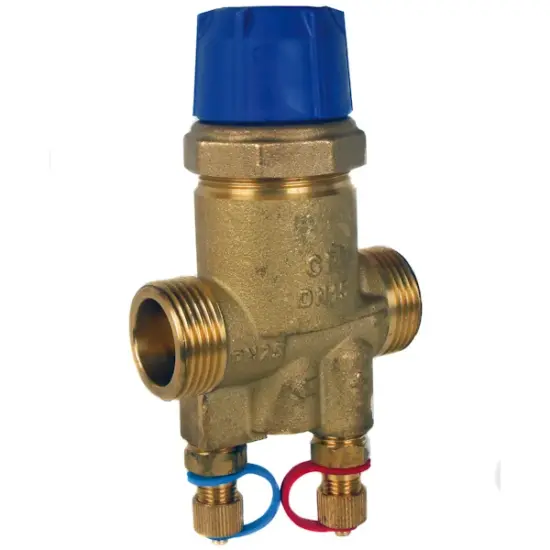

Albion Art20C Compact Brass Pressure Independent Control Valve

Albion Art20C PN25 Compact Pressure Independent Control Valve (PICV)

The Albion Art20C is a compact pressure independent control valve (PICV), also referred to as a PIBCV. It is designed to automatically regulate and balance water flow within HVAC and hydronic systems, regardless of pressure fluctuations. The body, bonnet, regulator, and fixing ring are manufactured from corrosion-resistant DZR brass, offering durability and reliability in demanding environments.

Available in sizes from 3/8″ to 1″ nominal bore, the Art20C is offered in both low and high flow versions, with male BSPP threaded connections to ISO 228/1. It features an EPDM gasket, a maximum operating pressure of 25 bar and operates across a wide temperature range of -10°C to 120°C. The valve includes a preset dial for simple flow selection, two binder test points, and offers energy-saving benefits through automatic flow balancing. Union tail pieces and gaskets (2 per valve) are required for installation, sold seperately, see related products.

Key Features:

• Compact pressure independent control valve (PICV / PIBCV)
• CW602N-M DZR brass body, bonnet, regulator & fixing ring
• Sizes: 3/8″ ? 1″ NB in low or high flow variants
• Male BSPP parallel threaded connections (ISO 228/1)
• Preset dial for simple and accurate flow selection
• Automatic flow balancing under varying pressure conditions
• EPDM gasket included, with 2 binder test points
• Max operating pressure: 25 bar (up to 100°C)
• Max differential pressure: 8 bar
• Operating temperature range: -10°C to 120°C
• 5-year manufacturer guarantee
• Union tail pieces & gaskets required (sold separately, see related products)

Ideal for precise flow regulation, simplified commissioning, and energy-efficient system performance in both new and retrofit HVAC installations.
