M-Press Stainless Steel 316 Press Fit Gas Ball Valve
| Brand: | M-Press Fittings |
|---|---|
| SKU: | 66V.GPGMS600 |
£14.97 – £91.93 ex. VAT
About this product

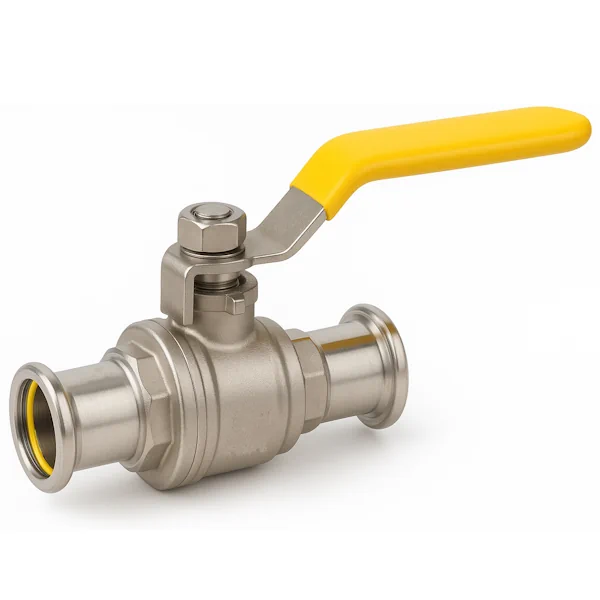

M-Press Stainless Steel 316 Press Fit Gas Ball Valve
Engineered for gas applications, this 2-piece press fit ball valve from M-Press offers reliable performance and safety. Constructed from robust 316L stainless steel, it features M-profile press connections and a manually operated lever handle for straightforward operation and dependable shut-off. Designed specifically for use with gas systems, the valve is DVGW approved and equipped with PTFE seals and HNBR press O-rings for enhanced chemical and thermal resistance. Suitable for pressures up to 5 bar and temperatures between -20°C and 70°C, it provides a secure, maintenance-friendly solution for domestic and commercial installations.
Key Features:
- Sizes: 15mm – 54mm
- 316L stainless steel body, ball, stem, and nut
- M-profile press fit connections
- PTFE seals and seats; EPDM press O-rings
- DVGW approved for gas applications
- Maximum pressure: 5 bar
- Temperature range: -20°C to 70°C
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | |
| Valve Type | 2-Piece Ball Valve |
| Connections | M-Profile Press Fit |
| Operation | Manual Lever/Handle Operated |
| Body Material | Stainless Steel 316L |
| Ball Material | Stainless Steel 316L |
| Stem Material | Stainless Steel 316L |
| Packing Nut Material | Stainless Steel 316L |
| Body Gasket Material | PTFE |
| Ball Seat Material | PTFE |
| Stem O-Ring Material | PTFE |
| Stem Packing Material | PTFE |
| Press O-Rings | HNBR |
| Maximum Operating Pressure | 5 Bar |
| Approvals | DVGW Approved (Gas) |
| Operating Temperature Range | -20°C – 70°C |
| Certification Availability | N/A |
