M-Press Stainless Steel 316 Press Fit High Handle Ball Valve
| Brand: | M-Press |
|---|---|
| SKU: | 66V.GPHS600 |
£17.17 – £99.44 ex. VAT
About this product

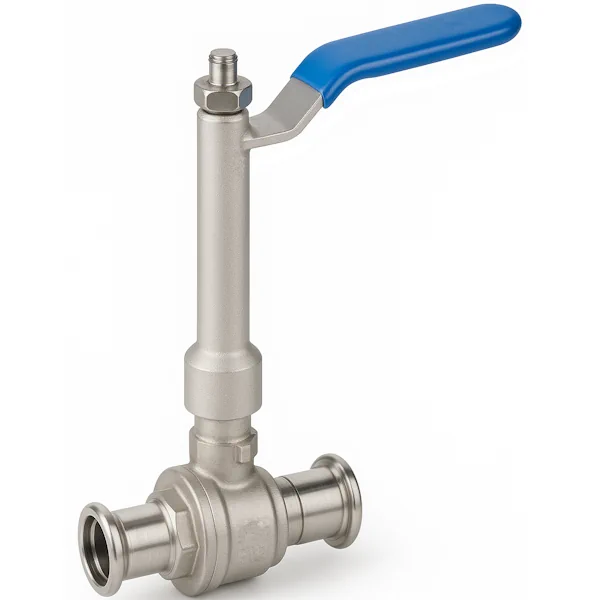

M-Press Stainless Steel 316 Press Fit Ball Valve – High Handle
This high handle version of the M-Press 2-piece stainless steel press fit ball valve is ideal for installations requiring improved clearance or easier access in tight or insulated pipework systems. Manufactured from durable 316L stainless steel with M-profile press fit connections, it offers excellent corrosion resistance and reliability. The extended lever handle provides greater control and accessibility, particularly in commercial and industrial applications. Designed for potable water use, the valve is WRAS approved and features PTFE sealing throughout with EPDM press O-rings for a secure, long-lasting connection.
Key Features:
- Sizes: 15mm – 54mm
- High handle design for improved clearance and accessibility
- 316L stainless steel body, ball, stem, and nut
- M-profile press fit connections
- PTFE seals and seats; EPDM press O-rings
- WRAS approved for potable water use
- Maximum pressure: 16 bar
- Temperature range: -10°C to 110°C
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | |
| Valve Type | 2-Piece Ball Valve |
| Connections | M-Profile Press Fit |
| Operation | Manual Lever/Handle Operated |
| Body Material | Stainless Steel 316L |
| Ball Material | Stainless Steel 316L |
| Stem Material | Stainless Steel 316L |
| Packing Nut Material | Stainless Steel 316L |
| Body Gasket Material | PTFE |
| Ball Seat Material | PTFE |
| Stem O-Ring Material | PTFE |
| Stem Packing Material | PTFE |
| Press O-Rings | EPDM |
| Maximum Operating Pressure | 16 Bar |
| Approvals | WRAS Approved (Potable Water) |
| Operating Temperature Range | -10°C – 110°C |
| Certification Availability | N/A |
