M-Press Stainless Steel 316 Press Fit 3-Piece Gas Ball Valve
| Brand: | M-Press |
|---|---|
| SKU: | 66V.SS300Y |
£23.28 – £519.29 ex. VAT
About this product

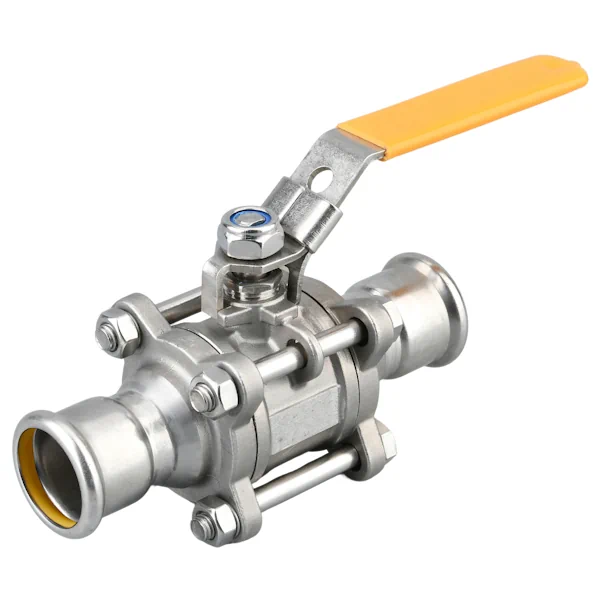

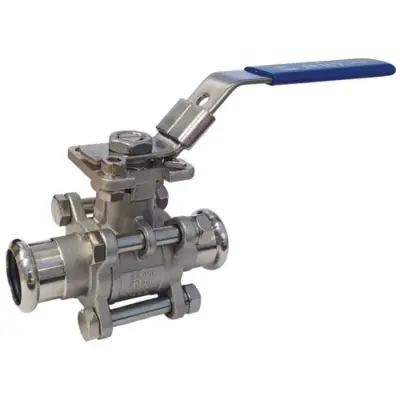

M-Press Stainless Steel 316 3-Piece Press Fit Gas Ball Valve
This M-Press 3-piece stainless steel press fit ball valve is engineered for gas applications, combining reliable performance with the convenience of press-fit installation. Its three piece design enables easy access for inspection and maintenance without removing the valve from the pipeline. Constructed entirely from 316L stainless steel, it includes durable HNBR press O-rings and PTFE sealing components, making it suitable for natural gas systems. The valve is DVGW approved and rated for pressures up to 5 bar.
Key Features:
- Sizes: 15mm – 54mm
- 3-piece body design for ease of maintenance
- 316L stainless steel body, ball, stem, and nut
- M-profile press fit connections
- PTFE seals and seats; HNBR press O-rings for gas compatibility
- DVGW approved for gas applications
- Maximum pressure: 5 bar
- Temperature range: -20°C to 70°C
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | |
| Valve Type | 3-Piece Ball Valve |
| Connections | M-Profile Press Fit |
| Operation | Manual Lever/Handle Operated |
| Body Material | Stainless Steel 316L |
| Ball Material | Stainless Steel 316L |
| Stem Material | Stainless Steel 316L |
| Packing Nut Material | Stainless Steel 316L |
| Body Gasket Material | PTFE |
| Ball Seat Material | PTFE |
| Stem O-Ring Material | PTFE |
| Stem Packing Material | PTFE |
| Press O-Rings | HNBR |
| Maximum Operating Pressure | 5 Bar |
| Approvals | DVGW Approved (Gas) |
| Operating Temperature Range | -20°C – 70°C |
| Certification Availability | N/A |
