M-Press Stainless Steel 316 Press Fit 3-Piece Ball Valve
| Brand: | M-Press |
|---|---|
| SKU: | 66V.SS300 |
£22.16 – £494.56 ex. VAT
About this product

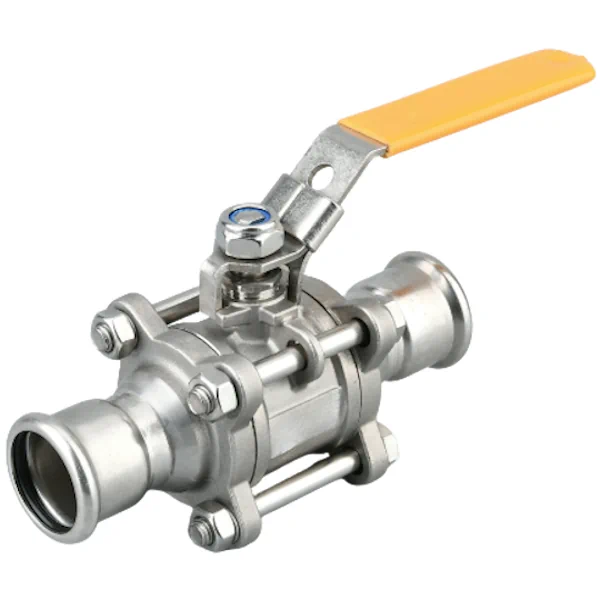

M-Press Stainless Steel 316 3-Piece Press Fit Ball Valve
This M-Press 3-piece stainless steel press fit ball valve is designed for performance, reliability, and easy maintenance. The three-piece construction allows for internal access without removing the valve from the pipework, ideal for systems where regular servicing may be required. Manufactured from durable 316L stainless steel, this valve features M-profile press fit ends and PTFE seals throughout for excellent chemical resistance and sealing performance. With WRAS approval, it’s suitable for use with potable water systems and operates up to 16 bar pressure.
Key Features:
- Sizes: 15mm – 54mm
- 3-piece body design for ease of maintenance
- 316L stainless steel body, ball, stem, and nut
- M-profile press fit connections
- PTFE seals and seats; EPDM press O-rings
- WRAS approved for potable water
- Maximum pressure: 16 bar
- Temperature range: -10°C to 110°C
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | |
| Valve Type | 3-Piece Ball Valve |
| Connections | M-Profile Press Fit |
| Operation | Manual Lever/Handle Operated |
| Body Material | Stainless Steel 316L |
| Ball Material | Stainless Steel 316L |
| Stem Material | Stainless Steel 316L |
| Packing Nut Material | Stainless Steel 316L |
| Body Gasket Material | PTFE |
| Ball Seat Material | PTFE |
| Stem O-Ring Material | PTFE |
| Stem Packing Material | PTFE |
| Press O-Rings | EPDM |
| Maximum Operating Pressure | 16 Bar |
| Approvals | WRAS Approved (Potable Water) |
| Operating Temperature Range | -10°C – 110°C |
| Certification Availability | N/A |
