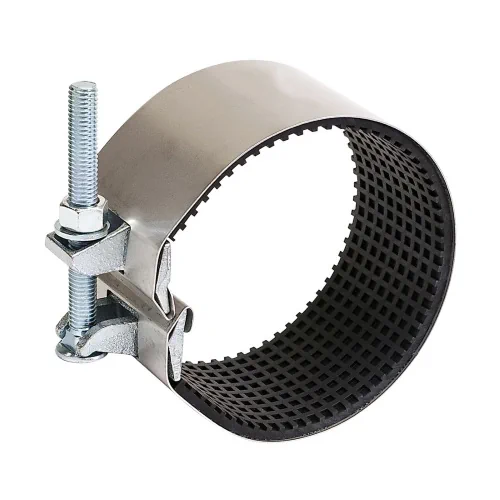

Single Bolt Pipe Repair Clamp – Stainless Steel 304

Brand: ValvesTubesFittings
SKU: 45-1401

£12.16£22.30 ex. VAT

About this product

Pipe Repair Clamp ? Stainless Steel Single Bolt (PN20)

This stainless steel pipe repair clamp offers a fast, cost-effective solution for sealing leaks or restoring the integrity of damaged pipelines. Designed for straightforward installation, it features a single bolt mechanism, making it ideal for use in emergency or planned maintenance. The integrated EPDM gasket provides a secure, watertight seal, even under pressure.

Manufactured from high-quality stainless steel 304 and pressure-rated to PN20, this clamp is suitable for use with drinking water systems and compatible with a wide variety of pipe materials. It?s available in sizes to suit outside diameters from 21mm up to 118mm, making it a versatile option for both industrial and utility pipe repairs.

Key Features:

  • Stainless steel 304 construction with excellent corrosion resistance
  • Single bolt design for fast, simple installation
  • EPDM gasket provides a reliable, leak-free seal
  • Suitable for use with drinking water systems
  • Compatible with metal and plastic pipework
  • Pressure rated to 20 bar (PN20)
  • Range of sizes available to suit pipe ODs from 21mm to 118mm

Specification

Weight N/A
Brand

Fitting Type

Pipe Repair Clamp

Body Material

Stainless Steel 304

Clamp

Ductile Iron (EN GJS 500-7)

Body Gasket

EPDM Rubber

Maximum Operating Pressure

20 bar

Operating Temperature Range

-10°C – 60°C

Approvals

Suitable For Potable Water

Additional Information

Unsuitable for HDPE pipes.

Certification Availability

N/A
