Stainless Steel 316 45° Elbow – BSP Threaded

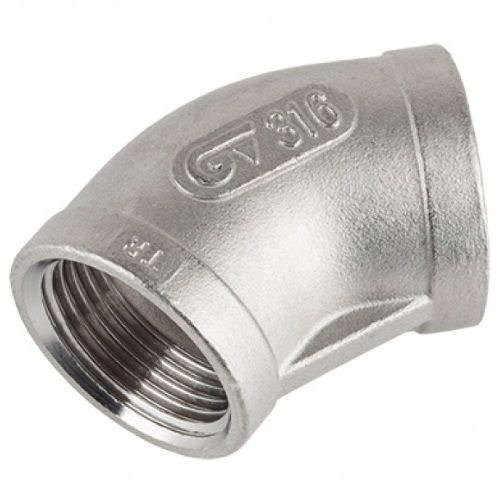

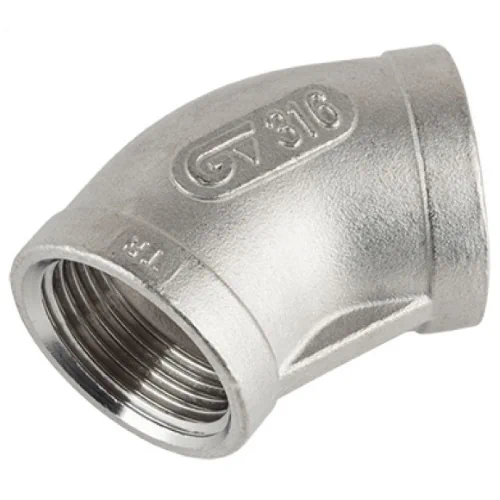

Genebre Art0120 Stainless Steel 316 BSPP 45 Degree Elbow

The Genebre Art0120 stainless steel 45° elbow is designed for changing the direction of flow in threaded pipework systems. Manufactured from high quality 316 stainless steel, it provides excellent corrosion resistance and durability, making it suitable for a wide range of industrial, commercial, and process applications.

Featuring female BSPP parallel threaded ends manufactured in accordance with ISO 7-1 (EN 10226-1), this fitting conforms to ISO 4144:2003 for threaded stainless steel pipe fittings. With a robust 1.5mm wall thickness and a pressure rating of PN20, it is suitable for use in demanding systems handling water, steam, compressed air, oils, and compatible chemicals.

Key Features:

• Genebre Art0120 stainless steel threaded 45° elbow
• Manufactured from corrosion-resistant 316 stainless steel
• Female BSPP parallel threaded connections
• Threads manufactured to ISO 7-1 (EN 10226-1)
• Conforms to ISO 4144:2003 stainless steel threaded fittings standard
• Wall thickness: 1.5mm
• Maximum operating pressure: PN20 (20 bar) up to 40°C
• Operating temperature range: -20°C to 220°C
• Suitable for water, steam, compressed air, oil, and many industrial fluids
• Size range: 1/8″ (6mm) – 4″ (100mm) NB
