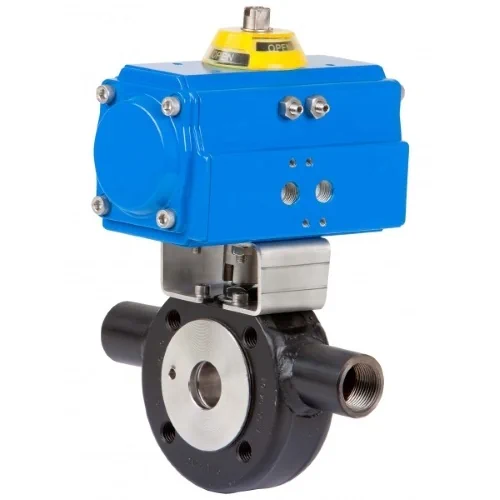

Genebre Art5115 Carbon Steel Actuated Wafer Ball Valve With Heating Chamber

Brand:	Genebre
SKU:	81ART5115

£241.02 – £1,336.78 ex. VAT

Valve Size

Actuator Type

Clear

About this product

Actuated wafer type ball valve based on the Genebre Art2115

Full bore wafer ball valve in carbon steel with a built-in heating chamber

Body made of carbon steel (ASTM A105)

Wafer body suitable for installation between PN16 pipe flanges to the BS EN 1092-1 standard

Ball seats and gasket made of PTFE

Ball made of grade 304 stainless steel

Maximum operating pressure: 16 bar (PN16)

Operating temperature range: -20°C – 180°C

Comes with a factory fitted Art5800 GNP pneumatic actuator

Rack and pinion operation with a 90° rotation (quarter turn)

Uses compressed air or any other inert gas for opening and closing the valve

Actuator feed connections: G1/4″ Threaded

Actuator feed pressure range: 2 – 8 bar

Actuator operating temperature range: -20°C – 80°C

VDI/VDE 3845 (NAMUR) mount for compatible control valves or positioners

Weight	N/A
Dimensions	N/A
Actuator Type	Double Acting, Spring Return
Brand	Genebre
Connections	Wafer Pattern (For installation between flanges)
Operation	Actuated
Body Material	Carbon Steel ASTM A105 (Painted)
Ball Material	Stainless Steel 304
Stem Material	Stainless Steel 304
Body Gasket Material	PTFE
Ball Seats Material	PTFE
Stem Packing Material	PTFE
Flange Bolt Holes	See datasheet
Flange Thickness	See datasheet
Maximum Operating Pressure	16 bar
Operating Temperature Range	-20°C – 180°C
Approvals	ATEX 94/9/CE Certified – Actuator (Safety).
Actuator Type	Art5800 GNP Pneumatic Rack & Pinion Actuator
Actuator Body Material	Aluminium ASTM 6005 (Painted)
Operating Medium	Compressed air or inert gas (2 – 8 bar)
Inlet Connections	1/4" (8mm) Female BSP parallel threaded
Actuator Operating Temperature Range	-20 – 80 Degrees C
Control Valve Interface	VDI/VDE 3845 (NAMUR)
Additional Information	3/4" BSP Threaded heating jacket connection.
Certification Availability	N/A
