Genebre Art3510 Full Bore Brass Ball Valve For Gas (Male/Female)

Genebre Art3510 Full Bore Gas Ball Valve (Male x Female)

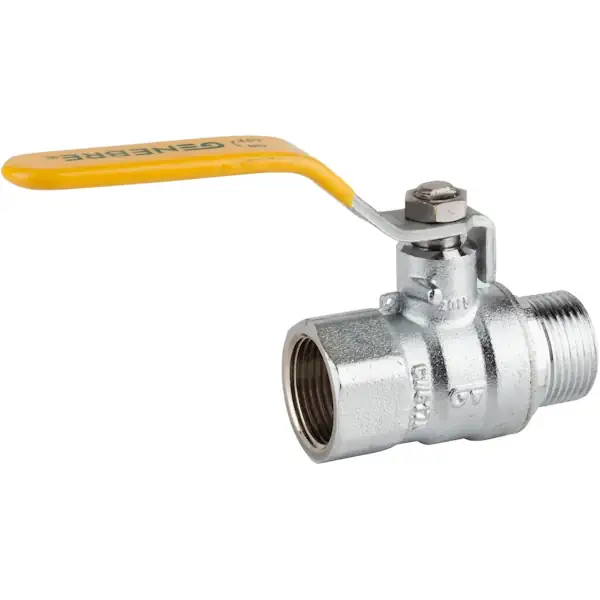

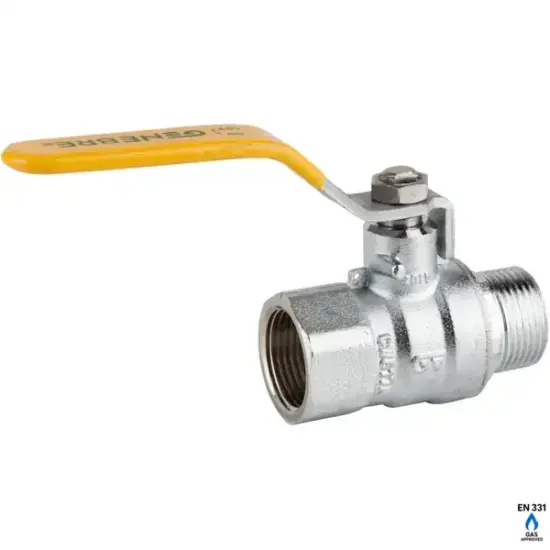

The Genebre Art3510 is a full bore brass ball valve for natural gas installations, featuring a compact 2-piece design with male x female BSPT threaded ends for flexible connection options. Certified to BS EN 331, this valve is suitable for a wide range of domestic and light commercial gas systems.

Constructed from durable chrome-plated brass with PTFE ball seats and an NBR body gasket, the Art3510 offers reliable sealing and performance. It is operated via a manual lever handle that can be sealed in the closed position for added security.

Key Features:

• Size range: 1/2″ ? 3/4″ nominal bore
• Full bore 2-piece design
• Body & cap: Chrome plated brass CW617N
• Ball: Chrome plated brass CW617N with PTFE seats
• Stem: CW614N brass with dual NBR O-rings to BS EN 549
• Sealing: NBR body gasket with adhesive
• Threaded ends: Male x Female BSPT to ISO 7-1 / BS EN 10226-1
• Operation: Manual lever handle with sealable closed position
• Approved to BS EN 331 for natural gas
• Max pressure: 5 bar
• Temperature range: -20&°C to 60&°C
