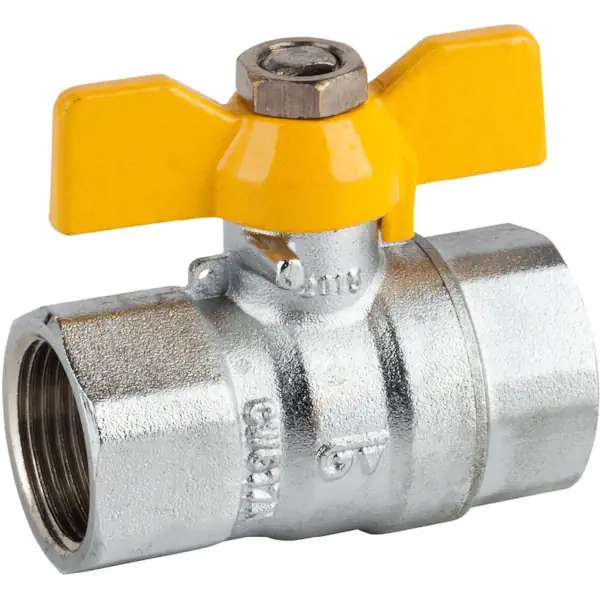

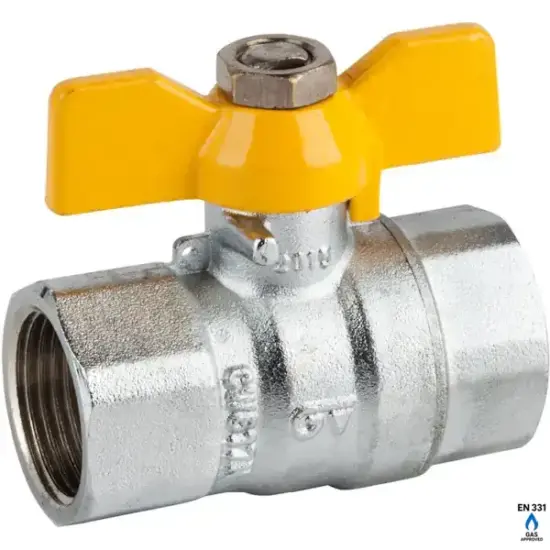

Genebre Art3505 Full Bore Brass Ball Valve For Gas (Butterfly Handle)

Genebre Art3505 Full Bore Gas Ball Valve (Butterfly Handle)

The Genebre Art3505 is a compact full bore brass ball valve designed for natural gas applications. Certified to BS EN 331, this valve is available in sizes from 1/2″ to 1″ nominal bore. It features a durable chrome-plated brass body and cap, PTFE ball seats, and a brass stem with dual NBR O-rings for reliable gas sealing.

Fitted with a butterfly handle for space-saving installations and ease of use, the Art3505 is ideal for residential and commercial gas systems. The handle can be sealed in the closed position for tamper resistance and added safety.

Key Features:

• Size range: 1/2″ ? 1″ nominal bore
• Full bore 2-piece design
• Body & cap: Chrome plated brass CW617N
• Ball: Chrome plated brass CW617N with PTFE seats
• Stem: CW614N brass with dual NBR O-rings to BS EN 549
• Sealing: NBR body gasket with adhesive
• Threaded ends: Female BSPT to ISO 7-1 / BS EN 10226-1
• Operation: Manual butterfly handle with sealable closed position
• Approved to BS EN 331 for natural gas
• Maximum pressure: 5 bar
• Temperature range: -20°C to 60°C
