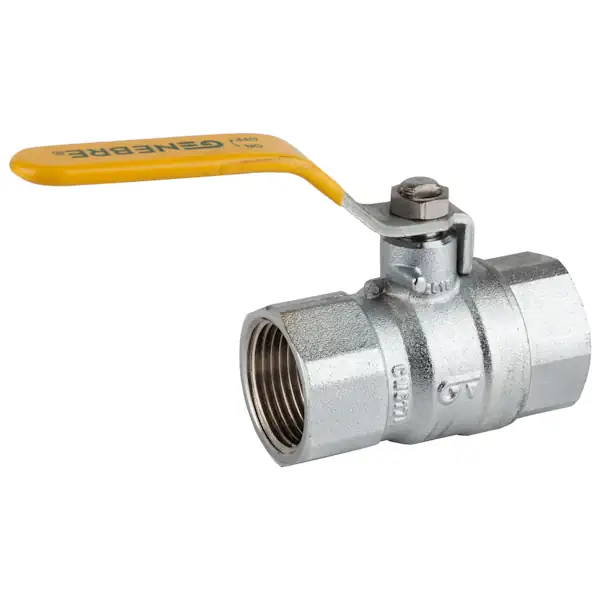

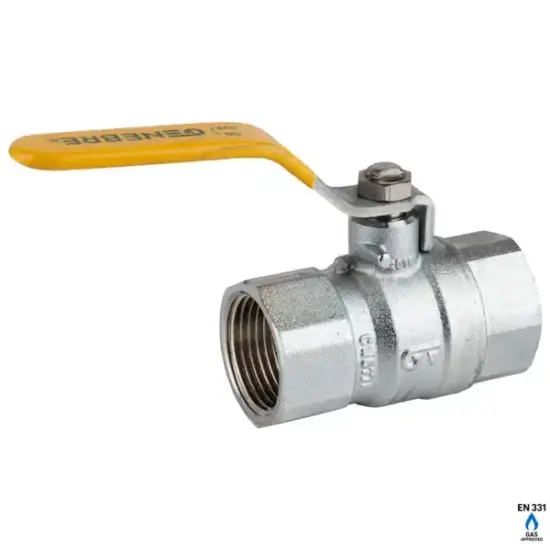

Genebre Art3500 Full Bore Brass Ball Valve For Gas (PN5)

Genebre Art3500 Full Bore Gas Ball Valve

The Genebre Art3500 is a full bore brass ball valve designed and approved for natural gas installations. Manufactured in accordance with BS EN 331, it is available in sizes from 1/2″ to 1 1/4″ nominal bore. This two-piece valve features a robust chrome-plated brass body and cap, with high-quality PTFE seats and a stem sealed with NBR O-rings for long-lasting, leak-free performance.

With female BSPT threaded ends and manual lever operation, the Art3500 is easy to install and operate. It includes a sealable handle for tamper prevention, making it ideal for residential, commercial, and industrial gas systems.

Key Features:

• Size range: 1/2″ ? 1 1/4″ nominal bore
• Full bore 2-piece design
• Body & cap: Chrome plated brass CW617N
• Ball: Chrome plated brass CW617N with PTFE seats
• Stem: CW614N brass with dual NBR O-rings to BS EN 549
• Sealing: NBR body gasket with adhesive
• Threaded ends: Female BSPT to ISO 7-1 / BS EN 10226-1
• Operation: Manual lever handle with sealable closed position
• Approved to BS EN 331 for natural gas
• Max pressure: 5 bar
• Temperature range: -20°C to 60°C
