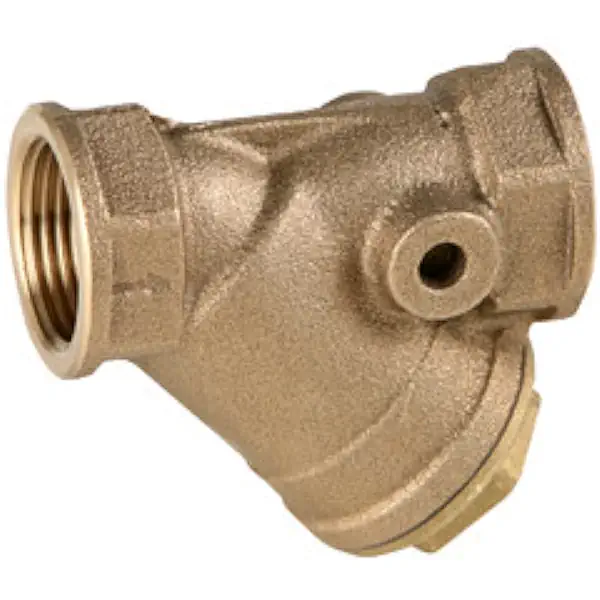

Genebre Art3304 Bronze Y-Strainer

Genebre Art3304 Bronze Y-Strainer

The Genebre Art3304 is a high-quality bronze Y-type strainer designed for use in non-potable water and compressed air systems. It features a corrosion-resistant bronze body with a stainless steel 304 mesh screen to effectively trap debris and protect downstream equipment.

With female BSPP parallel threaded connections and a robust thermoresistant fibre gasket, this strainer is ideal for low to medium pressure filtration tasks. The removable cap allows for quick and easy access to the screen for cleaning or maintenance.

Key Features:

• Size range: 3/8″ – 1 1/2″ nominal bore
• Body: Bronze CC499K
• Cap: Brass CW617N, sealed with non-asbestos thermoresistant fibre gasket
• Threaded ends: Female BSPP parallel (ISO 228/1 & BS EN 10226-1)
• Filter screen: Stainless steel 304, 400 micron mesh
• Suitable for non-potable water and compressed air
• Pressure rating: PN16 (up to 2″), PN10 (2 1/2″ – 4″) at up to 100°C
• Operating temperature range: -20°C to 110°C
