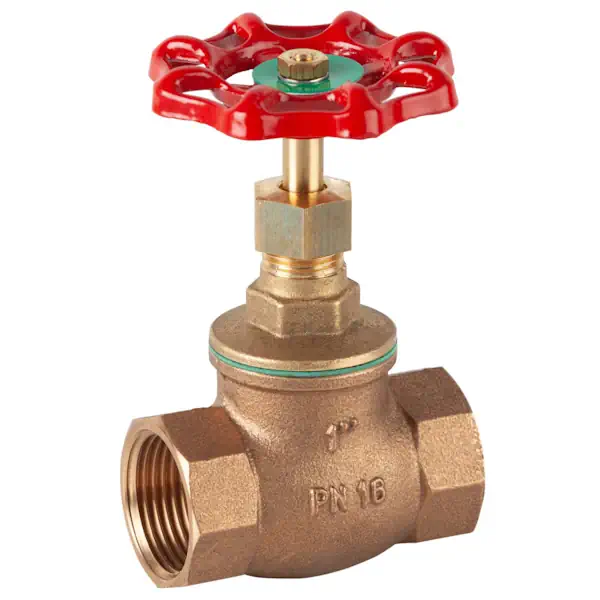

Genebre Art3228 Bronze Globe Valve
The Genebre Art3228 is a robust bronze globe valve designed for isolation and flow regulation in a wide range of systems. Suitable for use with hot and cold water, as well as oils and other compatible fluids, it?s available in sizes from 3/8″ to 2″ nominal bore. The valve features a durable bronze RG5 body, manual handwheel operation, and precision-machined internal components for long-term reliability.
This valve is pressure rated to 16 bar and operates effectively across a broad temperature range, making it a dependable choice for industrial and commercial applications.
Key Features:
- Size range: 3/8″ ? 2″ nominal bore
- Body: RG5 bronze (UNE-EN 1982), cap: CW614N brass (UNE-EN 12165)
- Sealing: Fibre gasket (SIL C-4400) and PTFE seat
- Disc, stem & stem nut: CW614N brass
- Stem packing: Graphite for high-temperature resistance
- Threaded ends: Female BSPT (taper) to ISO 7/1 & BS EN 10226-1
- Manual operation with handwheel
- Pressure rating: 16 bar
- Temperature range: -10°C to 180°C
- Suitable for water, oils, and other compatible fluids
