Genebre Art3227 Bronze Loose Jumper Globe Stop Valve (PN16)

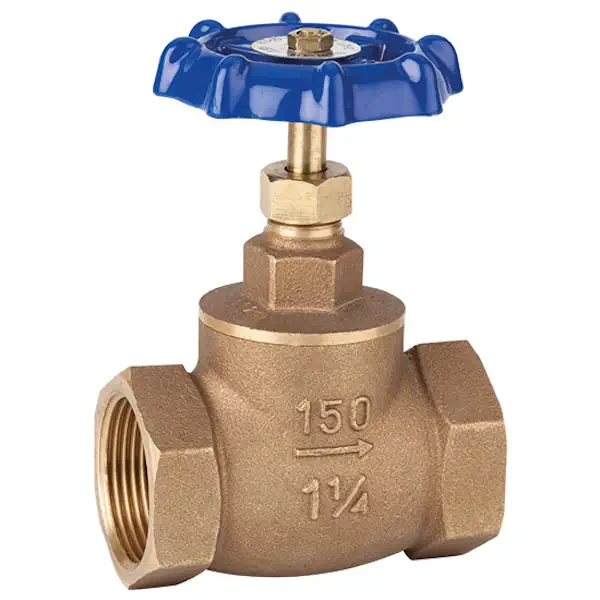

Genebre Art3227 Bronze Loose Jumper Globe Stop Valve

The Genebre Art3227 is a high-quality bronze globe stop valve featuring a loose jumper design for reliable isolation and flow regulation. Available in sizes from 3/4″ to 1 1/2″ nominal bore, this valve is WRAS approved for potable water and suitable for a wide range of hot and cold water applications, as well as compatible fluids in commercial and industrial systems.

Constructed from corrosion-resistant bronze with robust internals, the Art3227 offers long service life and dependable performance, with manual handwheel control and a pressure rating of PN16 up to 60°C.

Key Features:

• Size range: 3/4″ ? 1 1/2″ nominal bore
• Full bore body & bonnet: CC491K bronze to UNE-EN 1982 with PTFE gasket
• Threaded ends: Female BSPT (taper) to ISO 7/1 & BS EN 10226-1
• Stem & disc: CW617N brass with EPDM seat/seal
• Stem packing: CW617N brass with PTFE O-ring
• Manual operation with handwheel
• WRAS approved for use with drinking water
• Pressure rating: PN16 up to 60°C
• Temperature range: -20°C to 85°C
• Suitable for hot and cold water and other compatible fluids
