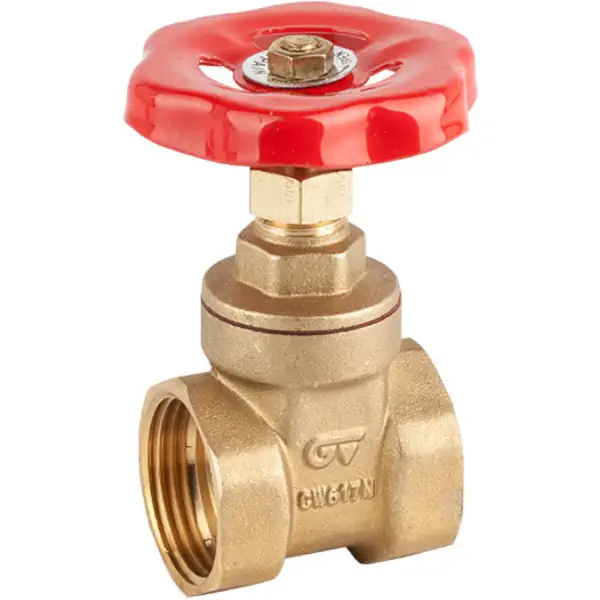

Genebre Art3222 PN16 Standard Bore Brass Gate Valve (NPT Threaded)

Genebre Art3222 PN16 Standard Bore Brass Gate Valve with NPT Threads

The Genebre Art3222 is a manually operated brass gate valve designed for reliable flow isolation in low-to-medium pressure systems. Available in sizes from 1″ to 3″ nominal bore, this standard bore valve is suitable for hot and cold water, air, and compatible oils. It features a durable brass construction with precision-engineered internal components for long service life and dependable sealing.

With female NPT taper threaded ends to ANSI/ASME B1.20.1, the valve can be mounted in any orientation, offering installation flexibility across commercial, industrial, and mechanical systems.

Key Features:

• Size range: 1″ ? 3″ nominal bore
• Body & bonnet: CW617N brass, conforms to UNE-EN 12165
• Gate/disc: CW617N brass
• Threaded ends: Female NPT to ANSI/ASME B1.20.1
• Bonnet sealed with PTFE gasket
• Stem seals: FKM, NBR, or PTFE depending on valve size
• Manual operation with handwheel
• Pressure rating: PN16 up to 80°C
• Temperature range: Air -15°C to 105°C; Water 0°C to 110°C
• Mountable in any orientation
