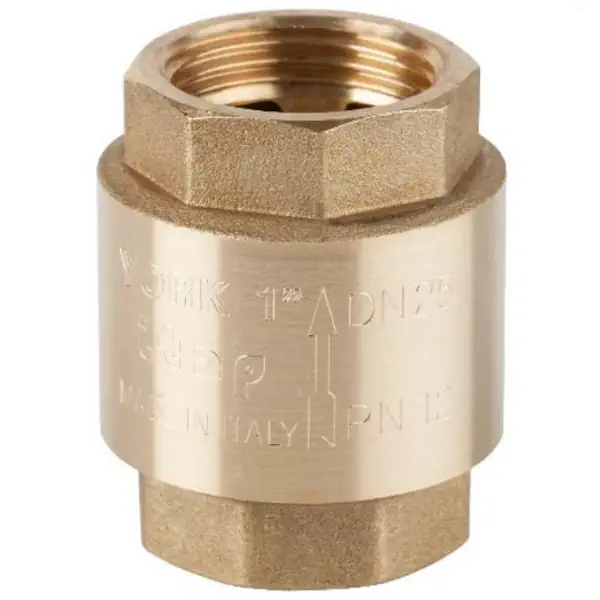

Genebre Art3120 “YORK” Brass Spring Check Valve
This compact and versatile brass spring check valve from Genebre is designed for reliable non-return flow control across a wide range of domestic and light commercial applications. Constructed from high-quality brass to UNE-EN 12165 standards, it offers dependable sealing and smooth operation in heating, cooling, and compressed air systems.
With BSPP female threaded ends to ISO 228/1 and a spring-assisted design, the valve can be installed in any orientation?horizontal, vertical, or angled?making it ideal for tight spaces and retrofit scenarios.
Key Features:
- Spring-loaded non-return valve for domestic and HVAC use
- Brass body manufactured to UNE-EN 12165 standards
- Threaded BSP (parallel) female ends to ISO 228/1
- Polyamide 6 shutter disc with NBR rubber seal (65 Shore)
- Stainless steel AISI 302 internal spring
- Working temperature range: -20°C to +100°C
- Maximum pressure: 12 bar (DN15 – DN25), 10 bar (DN32 – DN50), 8 bar (DN65 – DN100)
- Can be fitted in horizontal, vertical, or oblique positions
Ideal for use in domestic water systems, heating and air conditioning installations, and compressed air circuits requiring compact backflow prevention.
