Genebre Art3084 Full bore square handle brass ball valve with PN25 rating and female BSPP parallel threads. Chrome plated body, PTFE ball seats.

1″ Genebre Art3084 Full Bore Square Handle Brass Ball Valve (pn25)

Brand: Genebre
SKU: 32ART3084025
Availability:In stock (can be backordered)

£10.84 ex. VAT

In stock (can be backordered)

About this product

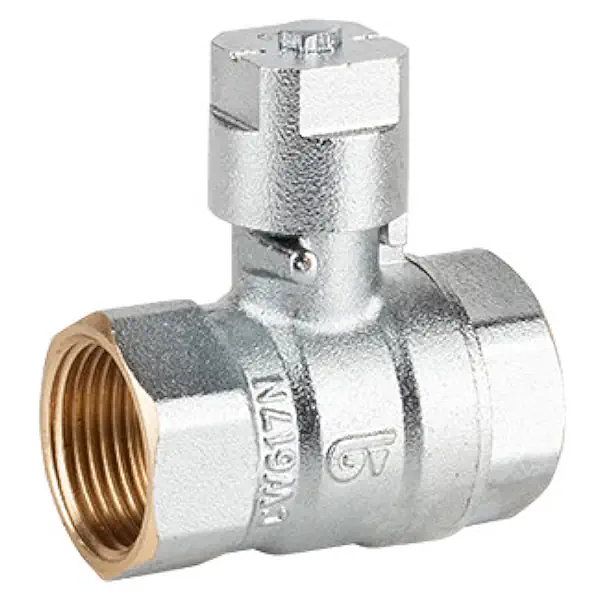

DN25 Genebre Art3084 Square Handle Brass Ball Valve

The 1″ NB Genebre Art3084 is a robust full bore ball valve featuring a distinctive 20mm square handle for precise manual operation. Constructed from chrome-plated CW617N brass, this 2-piece valve is available in a 1″ nominal bore size and designed for reliable performance across a wide range of applications.

The valve includes female BSPP parallel threaded ends conforming to BS EN 10226-1 and ISO 228/1 standards. It features a chrome-plated brass ball with PTFE seats and a chrome-plated brass stem sealed with PTFE packing and an NBR O-ring, ensuring durability and tight sealing.

Key Features:

  • Size: 1″ nominal bore
  • Full bore, 2-piece chrome-plated CW617N brass body
  • Female BSPP threaded ends to BS EN 10226-1 and ISO 228/1
  • Chrome-plated brass ball with PTFE seats
  • Chrome-plated brass stem with PTFE packing and NBR O-ring
  • Manual operation via 20mm square chrome-plated CW617N brass handle
  • Pressure rating: 25 bar (PN25) up to 80°C
  • Operating temperature range: -20°C to 110°C
Datasheet download

Specification

Weight 0.38 kg
Dimensions 68 × 40 × 77 mm
Valve Size

1" NB
Brand

Valve Type

2-Piece Full Bore Ball Valve
Connections

Female BSPP Parallel Threads – ISO 228-1, BS EN 10226-1
Operation

Manual Square Handle Operated
Body Material

Brass (Chrome Plated)
Ball Material

Brass (Chrome Plated)
Stem Material

Brass (Chrome Plated)
Ball Seat Material

PTFE
Stem O-Ring Material

NBR
Maximum Operating Pressure

25 bar
Operating Temperature Range

-20°C – 110°C
Certification Availability

N/A
