1″ Genebre Art3075 Full Bore 90 Degree Angled Brass Union Ball Valve (Male/Female)

1″ NB Genebre Art3075 90? Angled Brass Union Ball Valve (Male/Female)

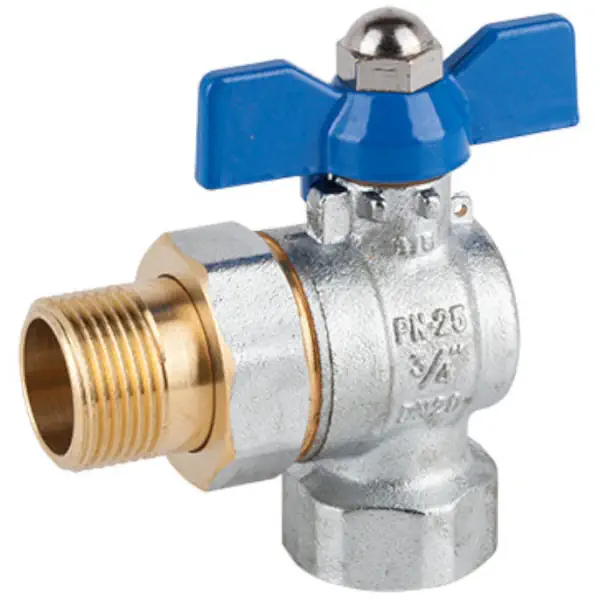

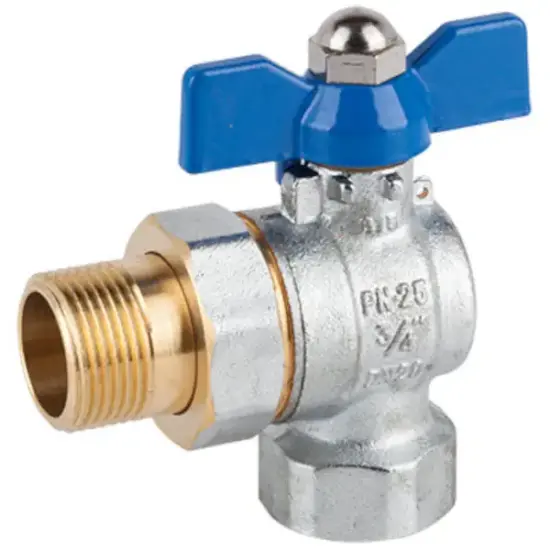

The Genebre Art3075 is a 90-degree angled full bore ball valve designed for compact piping layouts and easy maintenance. Constructed from chrome-plated CW617N brass to UNE-EN 12165 standards, this 2-piece valve features a union connection for convenient installation and servicing. Available in a 1″ nominal bore size, it combines reliable performance with practical design.

The valve has male and female BSPP threaded ends to ISO 228/1, with the male end functioning as a union connection sealed by an NBR O-ring. Internally, it includes a chrome-plated brass ball with PTFE seats and a chrome-plated brass stem sealed with PTFE packing and NBR O-rings. Manual operation is provided via a butterfly handle for simple and precise flow control.

Key Features:

• Size: 1″ nominal bore
• Full bore, 2-piece chrome-plated CW617N brass body
• Male x female BSPP threaded ends to ISO 228/1
• Union male end with brass union nut and NBR O-ring sealing
• Chrome-plated brass ball with PTFE seats
• Chrome-plated brass stem with PTFE packing and NBR O-rings
• Manual butterfly handle operation
• Pressure rating: 25 bar at up to 80 °C
• Operating temperature range: -20&°C to 110°C
