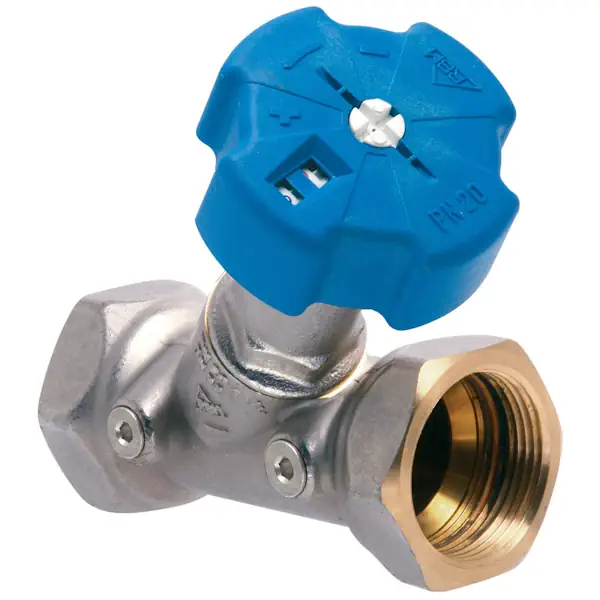

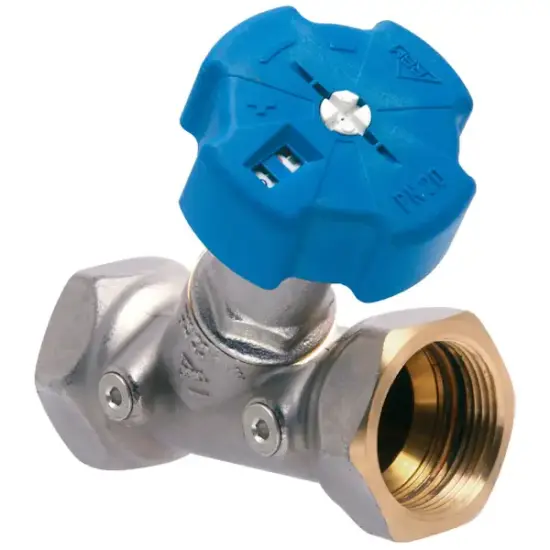

Genebre Art3073 Brass Static Balancing Valve (PN20)

Genebre Art3073 Static Balancing Valve

The Genebre Art3073 is a precision static balancing valve designed for flow regulation in hot or cold water systems. Suitable for both open and closed circuits, it allows micrometric adjustment of flow rate and is ideal for commissioning and balancing hydronic installations. Manufactured from chrome-plated CW617N brass, it is available in sizes from 1/2″ to 2″ nominal bore.

This valve features female BSPP threaded ends to ISO 228/1, a manual handwheel for calibrated flow control, and two integrated G1/8″ pressure tap connections for indirect flow rate measurement using differential pressure. It includes FKM (Viton) seals for excellent chemical resistance and is approved for use with potable water (ACS certified).

Key Features:

• Sizes: 1/2″ to 2″ nominal bore
• Static balancing valve with micrometric flow adjustment
• Chrome-plated brass (CW617N) body to UNE-EN 12165
• Brass internal components
• Female BSPP threaded ends to ISO 228/1
• Manual handwheel with flow calibration indicator
• Two G1/8″ female pressure tapping points on valve body
• FKM (Viton) seals for improved chemical and temperature resistance
• ACS certified for use with potable water (France)
• Compatible with water and 50% water/glycol mix
• Pressure rating: 20 bar
• Operating temperature range: -30°C to 120°C
