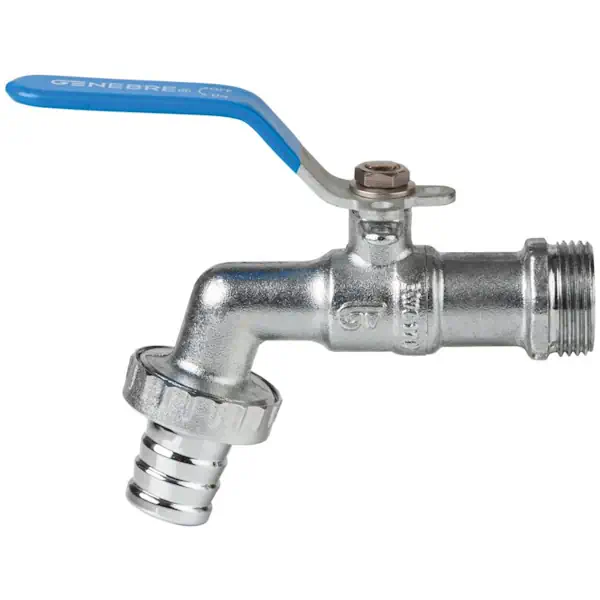

3/4″ Genebre Art3059 Brass Bibcock Ball Valve
The Genebre Art3059 is a garden-style bibcock ball valve designed for outdoor and general water supply use. It features a full bore, 2-piece CW617N brass body with a durable chrome-plated finish and is supplied in a 3/4″ nominal bore size.
This valve includes a 3/4″ male BSPP threaded inlet (ISO 228/1, BS EN 10226-1) and a 1″ bibcock hose connection outlet with integrated nylon diffuser. Internally, it incorporates a chrome-plated brass ball with PTFE seats, and a non-ejectable stem sealed with NBR O-rings. Manual operation is provided via a robust locking lever handle.
Key Features:
- Size: 3/4″ nominal bore
- Full bore, 2-piece CW617N brass body with chrome plating
- 3/4″ male BSPP threaded inlet to ISO 228/1, BS EN 10226-1
- 1″ hose connection (bibcock outlet) with nylon diffuser
- Chrome-plated brass ball with PTFE seats
- Non-ejectable stem with NBR O-ring sealing
- Manual locking lever handle
- Pressure rating: 16 bar (PN16)
- Operating temperature range: -20°C to 100°C
