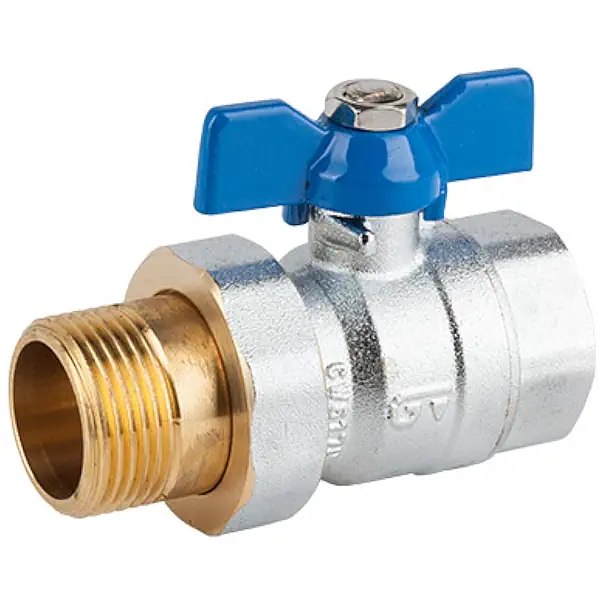

Genebre Art3046 Full Bore Brass Union Ball Valve (Male/Female)

Genebre Art3046 Brass Union Ball Valve

The Genebre Art3046 is a compact, full bore brass union ball valve designed for easy installation and maintenance in general-purpose fluid systems. This 2-piece valve is made from chrome-plated CW617N brass and is available in sizes from 1/2″ to 1 1/4″ nominal bore.

It features a male x female BSPP threaded connection to ISO 228/1, with the male union end sealed via an NBR O-ring. Internally, the valve uses a chrome-plated brass ball with PTFE seats and a stem equipped with PTFE packing and an NBR O-ring. Manual operation is provided by a butterfly handle.

Key Features:

• Sizes: 1/2″ to 1 1/4″ nominal bore
• Full bore, 2-piece CW617N brass body with chrome plating
• Male x female BSPP threaded ends to ISO 228/1
• Union end sealed with NBR O-ring for easy installation
• Chrome-plated brass ball with PTFE ball seats
• Chrome-plated brass stem with PTFE packing & NBR O-ring
• Manual butterfly handle operation
• Pressure rating: 25 bar at up to 80°C
• Operating temperature range: -20&°C to 110°C
