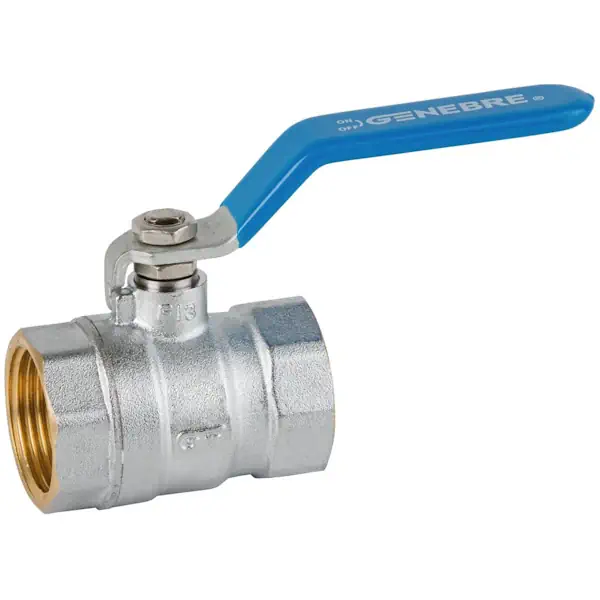

Genebre Art3028 Light Brass Ball Valve (PN25)

Genebre Art3028 Light Brass Ball Valve (PN25)

The Genebre Art3028 is a light-pattern, standard bore brass ball valve designed for general-purpose and potable water applications. Manufactured from CW617N brass, this 2-piece valve offers reliable performance in sizes ranging from 1/2″ to 4″ nominal bore.

It features BSPP female threaded ends to ISO 228/1, a chrome-plated brass ball with PTFE seats, and a robust lever handle for manual operation. The valve is ACS certified for use with drinking water and includes a chrome-plated brass stem with PTFE packing and an NBR O-ring for effective sealing.

Key Features:

• Sizes: 1/2″ to 4″ nominal bore
• Standard bore, 2-piece CW617N brass body and cap
• Female BSPP threaded ends to ISO 228/1
• Chrome-plated brass ball with PTFE seats
• Chrome-plated brass stem with PTFE packing & NBR O-ring
• ACS approved for potable water systems
• Manual lever operated
• Pressure rating: 25 bar at up to 80°C
  Rated to 70°C for sizes 2 1/2″ to 4″
• Operating temperature range: -20°C to 110°C
