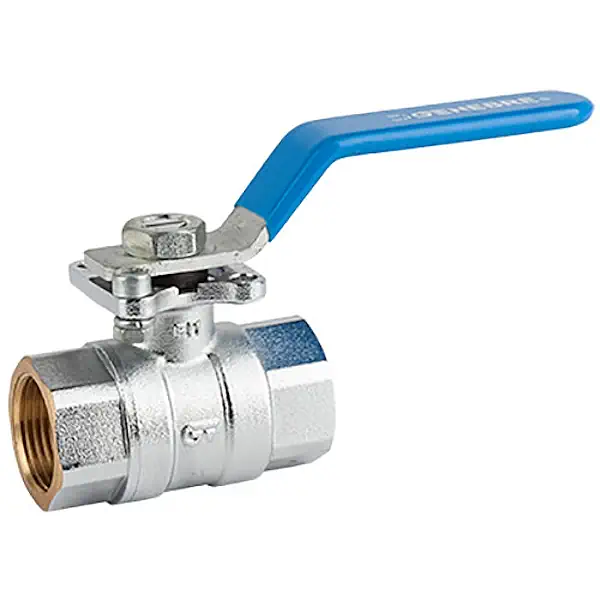

Genebre Art3023 ISO 5211 Direct Mount Brass Ball Valve (PN40)

Genebre Art3023 Brass Ball Valve with ISO 5211 Direct Mount

The Genebre Art3023 is a robust 2-piece brass ball valve designed for reliable performance in industrial and commercial systems. This full bore valve is constructed from chrome-plated CW617N brass and features a built-in ISO 5211 mounting bracket, allowing for straightforward actuator installation.

Supplied with female BSPP parallel threads to ISO 228/1, the Art3023 is manually operated as standard via a steel lever handle. It includes a chrome-plated brass ball, PTFE ball seats, and a blow-out proof stem with PTFE and NBR O-ring sealing, offering long-term durability under demanding conditions.

Key Features:

• Sizes: 1/2″ to 2″ nominal bore
• 2-piece, full bore brass body (CW617N) with chrome plating
• Female BSPP threaded ends to ISO 228/1
• ISO 5211 direct mount bracket for actuator installation
• Chrome-plated brass ball with PTFE seats
• Blow-out proof stem with PTFE & NBR seals
• Manual lever operation
• Pressure rating: 40 bar at up to 80°C
• Temperature range: -10°C to 110°C
