Stainless Steel 316 Full Socket – BSP Threaded

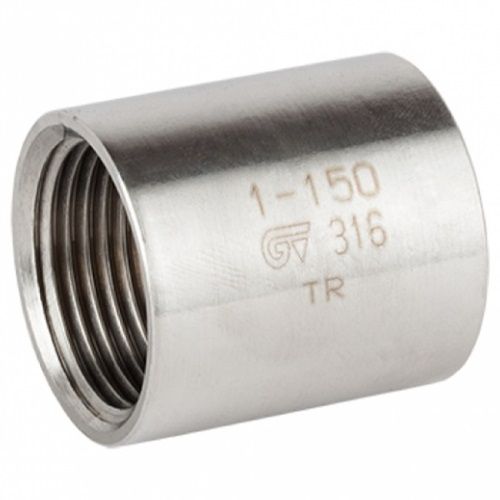

Genebre Art0270 Stainless Steel 316 Full Socket BSPP

The Genebre Art0270 full socket is cast from high quality AISI 316 (CF8M) stainless steel, providing excellent corrosion resistance and durability for plumbing, industrial, and process pipework systems. Its full socket design allows a pipe to be fully threaded into the fitting, providing a secure and compact connection ideal for pressurised applications.

Featuring female BSPP parallel threaded ends manufactured to ISO 7-1 (EN 10226-1) standards and built to ISO 4144:2003, this stainless steel socket is suitable for water, steam, and a variety of industrial fluids. Wall thickness is 1.5mm, with a maximum operating pressure of 20 bar (PN20) at up to 40°C and an operating temperature range of -20°C to 220°C. Use full sockets where a deeper threaded engagement is required for a stronger connection compared to half sockets.

Key Features:

• Cast from corrosion-resistant AISI 316 (CF8M) stainless steel
• Female BSPP parallel threaded ends to ISO 7-1 (EN 10226-1)
• Full socket design for deep threaded engagement
• Wall thickness: 1.5mm
• Manufactured in accordance with ISO 4144:2003
• Maximum operating pressure: 20 bar (PN20) at up to 40°C
• Operating temperature range: -20°C to 220°C
• Suitable for plumbing, industrial pipework, and process systems
