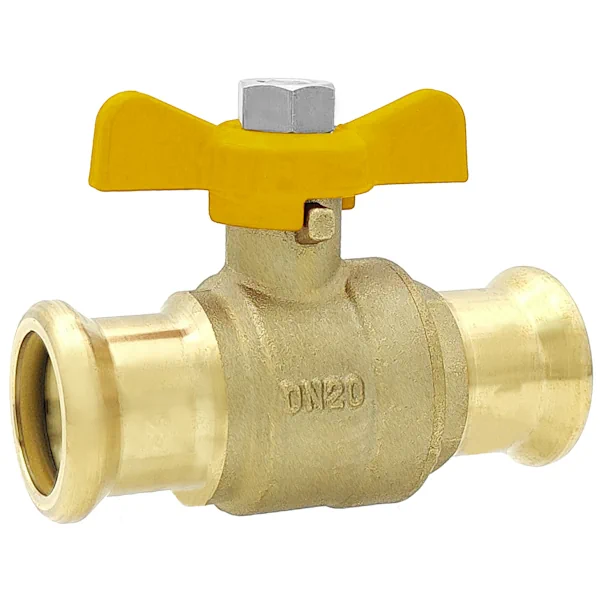

M-Press Brass Gas Ball Valve (Butterfly Handle)
| Brand: | M-Press Fittings |
|---|---|
| SKU: | 66V.GP600PP-YF |
£9.36 – £20.45 ex. VAT
About this product
M-Press Brass 2-Piece Press Fit Gas Ball Valve – Butterfly Handle
The M-Press 2-piece brass press fit ball valve features a compact butterfly handle, ideal for installations where space is limited and is DVGW approved and designed for use in natural gas and LPG systems. This version is manufactured using high-quality CW511L and CW617N brass and sealed with durable PTFE components, this valve delivers dependable shut-off performance. M-profile press fit ends allow for quick, secure, and solder-free connections.
Key Features:
- Sizes: 15mm – 28mm
- Brass body and ball (CW511L), brass stem and packing nut (CW617N)
- M-profile press fit connections for quick, secure installation
- Yellow butterfly handle for easy gas service identification
- PTFE seals and seats, HNBR press O-rings
- Manual operation with butterfly handle
- DVGW approved for gas systems
- Maximum pressure: 5 bar. Temperature range: -20°C to 70°C
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | |
| Valve Type | 2-Piece Ball Valve |
| Connections | M-Profile Press Fit |
| Operation | Manual Butterfly Handle Operated |
| Body Material | CW511L Brass |
| Ball Material | CW511L Brass |
| Stem Material | CW617N Brass |
| Packing Nut Material | CW617N Brass |
| Body Gasket Material | PTFE |
| Ball Seat Material | PTFE |
| Stem O-Ring Material | PTFE |
| Stem Packing Material | PTFE |
| Press O-Rings | HNBR |
| Maximum Operating Pressure | 5 Bar |
| Approvals | DVGW Approved (Gas) |
| Operating Temperature Range | -20°C – 70°C |
| Certification Availability | N/A |
