M-Press Brass Press Fit x BSP Threaded Ball Valve (Dual Handle Kit)
| Brand: | M-Press |
|---|---|
| SKU: | 66V.GP600PF |
£9.41 – £72.32 ex. VAT
About this product

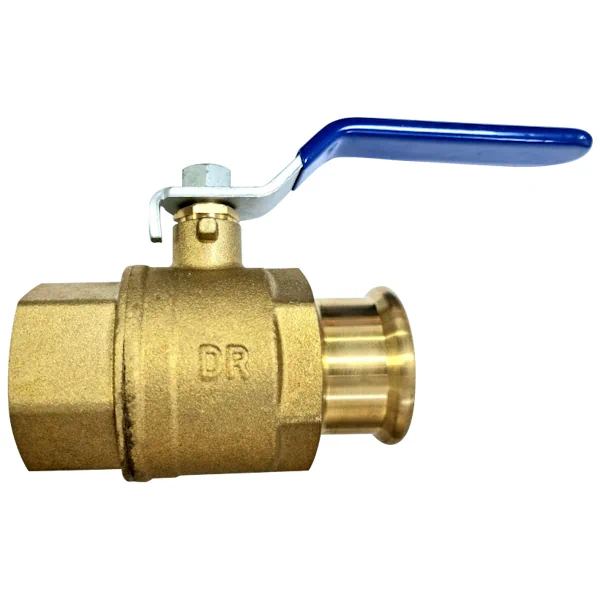

M-Press Brass 2-Piece Press Fit x Female BSP Threaded Ball Valve – Dual Colour Lever Handles
The M-Press 2-piece brass press fit ball valve is WRAS approved and designed for use in potable water systems. This version comes complete with two interchangeable lever handles, one red and one blue, offering clear visual identification for hot and cold water installations. Manufactured from high-quality CW511L and CW617N brass and sealed with durable PTFE components, this valve delivers dependable shut-off performance. M-profile press fit and female BSP threaded ends allow for quick, secure, and solder-free connections.
Key Features:
- Sizes: 15mm x 1/2″ – 54mm x 2″
- Brass body and ball (CW511L), brass stem and packing nut (CW617N)
- Female BSP threaded x M-profile press fit connections allows use with existing threaded installations
- Dual lever handle kit (red & blue) for hot/cold identification
- PTFE seals and seats, EPDM press O-rings
- WRAS approved for potable water systems
- Maximum pressure: 16 bar. Temperature range: -10°C to 110°C
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | |
| Valve Type | 2-Piece Ball Valve |
| Connections | M-Profile Press Fit x BSP Female Threaded |
| Operation | Manual Lever/Handle Operated |
| Body Material | CW511L Brass |
| Ball Material | CW511L Brass |
| Stem Material | CW617N Brass |
| Packing Nut Material | CW617N Brass |
| Body Gasket Material | PTFE |
| Ball Seat Material | PTFE |
| Stem O-Ring Material | PTFE |
| Stem Packing Material | PTFE |
| Press O-Rings | EPDM |
| Maximum Operating Pressure | 16 Bar |
| Approvals | WRAS Approved (Potable Water) |
| Operating Temperature Range | -10°C – 110°C |
| Additional Information | Dual handle kit includes red and blue handles |
| Certification Availability | N/A |
