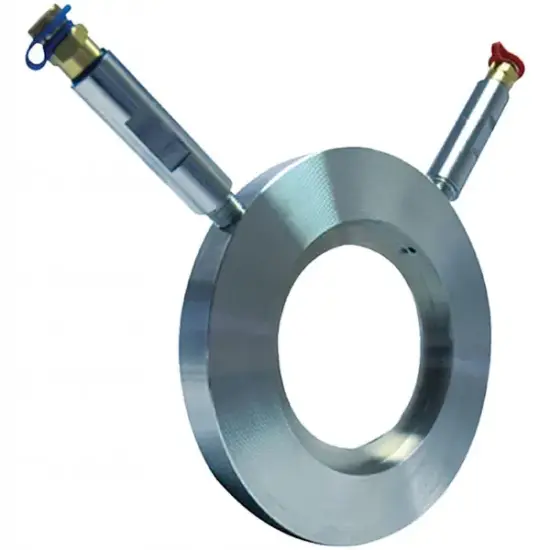

Albion Art270 PN16 Stainless Steel Orifice Plate
The Albion Art270 is a fixed orifice plate metering station designed for accurate flow measurement in heating and cooling systems. Manufactured from stainless steel 304, it features a wafer pattern body for installation between PN16 flanges to BS EN 1092-1 and includes two stainless steel 304 extensions fitted with brass binder test points for differential pressure monitoring.
Rated to PN16 and suitable for temperatures from -10°C to 120°C, the Art270 delivers flow measurement accuracy within +/-5% and conforms to BS 7350 flow characteristics. It can also be close coupled to a double regulating valve for combined flow measurement and balancing.
Key Features:
- Fixed orifice metering station in stainless steel 304
- Wafer pattern design for PN16 flanges (BS EN 1092-1)
- Includes two brass binder test points with stainless steel 304 extensions
- PN16 pressure rated
- Operating temperature range: -10°C to 120°C
- Flow characteristics confirmed to BS 7350
- +/-5% flow measurement accuracy
- Can be close coupled to a double regulating valve
Ideal for energy-efficient flow monitoring in commercial and industrial HVAC and water distribution systems.
