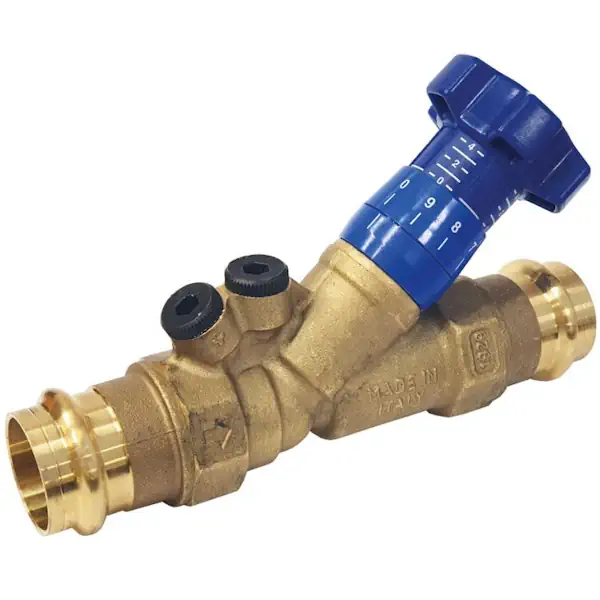

Albion Art23PRS DZR Brass Double Regulating Valve (Press Fit)

Brand:	Albion Valves
SKU:	31ART23PRS

£36.64 – £187.10 ex. VAT

Valve Size

Clear

About this product

Albion Art23PRS DZR Brass Double Regulating Valve (DRV)

The Albion Art23PRS DZR Brass double regulating valve provides precise flow control with and is designed for durability with a DZR brass body, stem, and disc (cone), paired with EPDM seals for long-lasting performance.

Key Features:

M-Profile press fit ends
Durable Construction: DZR brass body with EPDM seals for corrosion resistance and reliability.
Wide Temperature Range: -10°C – 120°C for diverse applications.
High Pressure Rated: 25 Bar pressure rating at up to 100?C.
User-Friendly: Plastic handwheel with shut-off function and 360° clear readout.
WRAS Approved: Suitable for potable water applications.

Datasheet download

Specification

Weight	N/A
Dimensions	N/A
Brand	Albion Valves
Valve Type	Double Regulating Valve
Connections	Press Fit (M)
Operation	Manual Handwheel Operated
Body Material	DZR (Dezincification resistant) Brass
Cone Material	DZR (Dezincification resistant) Brass
Stem Material	DZR (Dezincification resistant) Brass
Cone Seat Material	EPDM
Stem O-Ring Material	EPDM
Maximum Operating Pressure	24 bar (15mm), 20 bar (22mm – 28mm), 17 bar (35mm – 54mm)
Operating Temperature Range	-10°C – 120°C
Approvals	WRAS approved (Potable water)
Additional Information	Handwheel with shut off function and clear 360° reading.
Certification Availability	N/A
