Albion Art993H Stainless Steel Ball Valve (PN82)

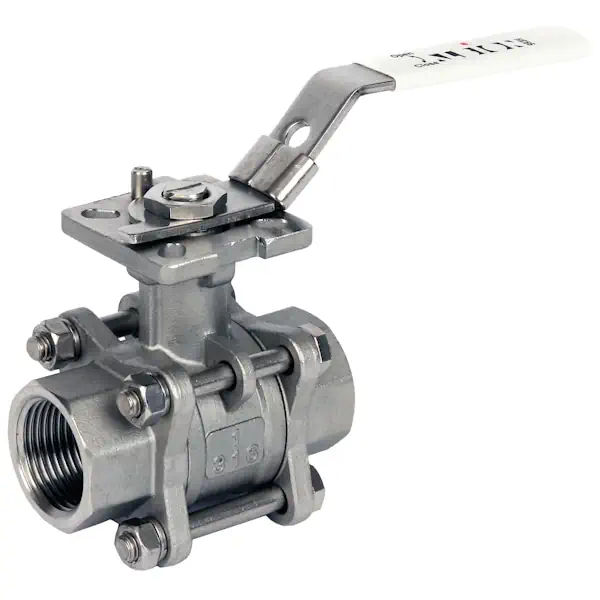

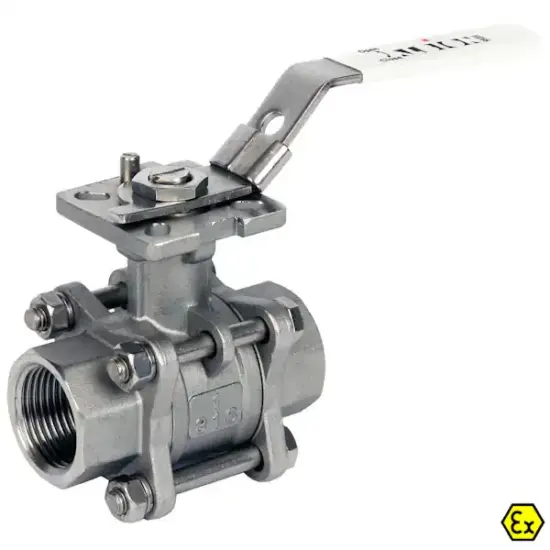

Albion Art993H Stainless Steel 3-Piece Ball Valve

The Albion Art993H is a premium 3-piece stainless steel ball valve engineered for high-performance fluid control in demanding applications. Designed with a full bore and robust construction, this valve is suitable for use in industrial, chemical, and process systems handling liquids or gases under high pressure and temperature conditions.

Constructed from stainless steel 316 (CF8M) with PTFE body gaskets and reinforced graphite-filled PTFE seats, the Art993H ensures excellent resistance to corrosion, wear, and aggressive media. It features female BSPT taper threaded ends (ISO 7/1), a stainless steel locking lever for manual control, and ISO 5211 mounting for actuation. The valve is ATEX approved and offers impressive pressure and temperature performance.

Key Features:

• 3-piece stainless steel 316 (CF8M) body with PTFE gaskets, SS304 nuts & bolts
• Full bore for unrestricted flow
• Stainless steel 316 ball with reinforced PTFE (15% graphite) seats
• Stainless steel 316 stem with PTFE packing, Viton (FKM) O-ring & SS304 gland
• Female BSPT taper threaded ends to ISO 7/1
• Manual operation with built-in SS304 locking lever
• ISO 5211 direct mount plate for easy actuation
• ATEX approved for hazardous environments
• Pressure ratings:
  • 82 bar (1/4″ – 1″)
  • 69 bar (1 1/4″ – 1 1/2″)
  • 62 bar (2″ – 4″)
• Operating temperature range: -25°C to 200°C
• Available in sizes 1/4″ – 4″ NB

An ideal choice for high-pressure and high-temperature systems requiring reliable shut-off, long service life, and compatibility with automation.
