Albion Art988L Stainless Steel 3-Way Ball Valve (T-Port)

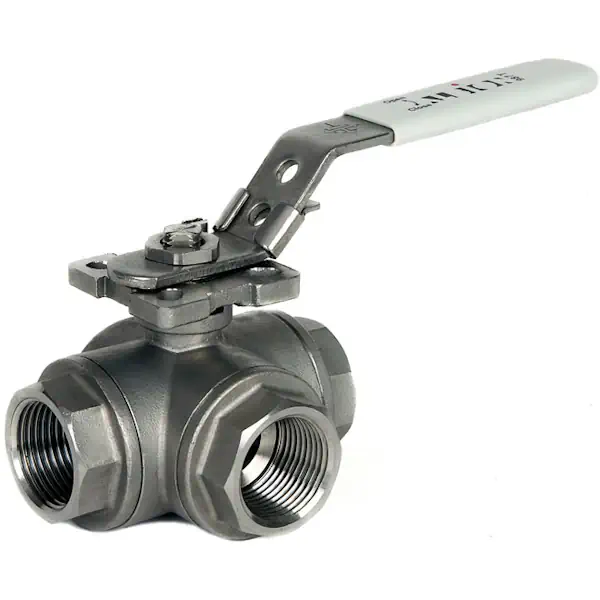

Albion Art988L Stainless Steel 3-Way L-Port Ball Valve

The Albion Art988L is a 3-way L-port ball valve designed to control flow direction between two outlets or isolate one leg of a system. Built from stainless steel 316 (CF8M), this reduced bore valve is suitable for a wide range of industrial uses, covering sizes from 1/4″ to 4″ NB, and offers full ATEX compliance.

It comes with BSPT female taper threads to ISO 7/1 and features a stainless steel 316 ball and stem, with 15% graphite-reinforced PTFE seats and PTFE/Viton sealing for long-term reliability. A manual locking lever is fitted as standard, with an ISO 5211 mounting plate for optional actuation.

Key Features:

• 3-way L-port configuration for directional flow control
• Stainless steel 316 CF8M body with reduced bore
• Female BSPT taper threads (ISO 7/1)
• 15% graphite-reinforced PTFE ball seats
• PTFE packing with FKM (Viton) and stainless steel stem seals
• Manual lever with lockable handle and ISO 5211 mounting
• ATEX approved for use in explosive atmospheres
• Pressure ratings: 82 Bar (1/4″ – 1″), 69 Bar (1 1/4″ – 1 1/2″), 62 Bar (2″ – 4″)
• Operating temperature: -25°C to +200°C
