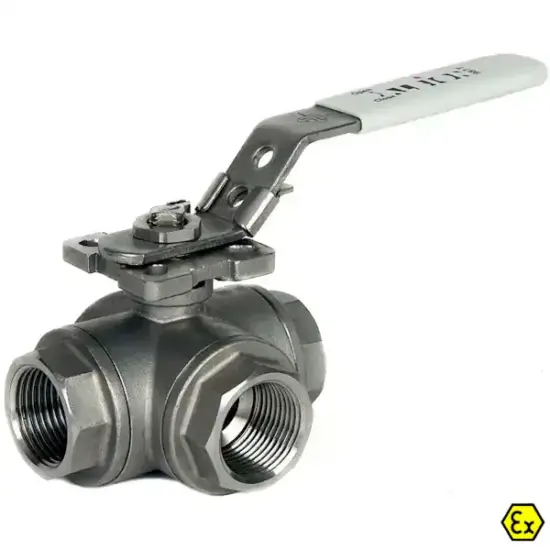

Albion Art987T Stainless Steel 3-Way Ball Valve (T-Port)

Albion Art987T Stainless Steel 3-Way T-Port Ball Valve

The Albion Art987T is a 3-way T-port ball valve manufactured from high-grade stainless steel 316 (CF8M), designed for fluid diversion or mixing applications. Suitable for sizes ranging from 1/4″ to 4″ NB, this reduced bore valve offers robust performance in demanding environments, complete with ATEX approval and a wide operating temperature range from -25°C to 200°C.

Featuring female BSPT taper threaded ends to ISO 7/1 and a manual locking lever, the Art987T also includes an ISO 5211 mounting pad for easy actuation. Internals include a stainless steel 316 ball and stem, 15% graphite-reinforced PTFE ball seats, PTFE packing, and FKM (Viton) stem seals for long-term sealing integrity.

Key Features:

• 3-way T-port configuration for mixing or diversion
• Stainless steel 316 CF8M body with reduced bore
• Female BSPT taper threads (ISO 7/1)
• PTFE and Viton (FKM) seals for chemical resistance
• Manual locking lever with ISO 5211 direct mount pad
• ATEX approved for hazardous areas
• Pressure ratings: 82 Bar (1/4″ – 1″), 69 Bar (1 1/4″ – 1 1/2″), 62 Bar (2″ – 4″)
• Temperature range: -25°C to +200°C
