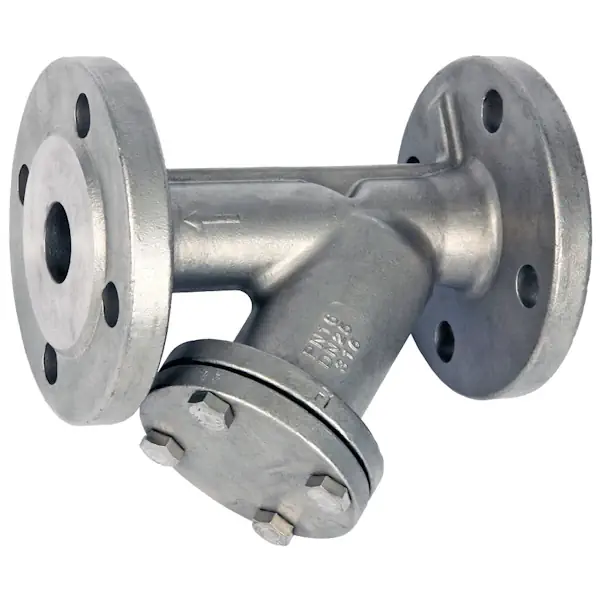

Albion Art969 Stainless Steel 316 Y-Strainer (PN16 Flanged)

Albion Art969 Stainless Steel Y-Strainer

The Albion Art969 is a durable Y-pattern strainer designed to protect downstream equipment by removing unwanted debris such as dirt, scale, and particulates from fluid systems. Its compact design and stainless steel construction make it suitable for use in water, oil, gas, and semi-aggressive chemical applications.

This strainer features a stainless steel 316 (CF8M) body and cap with a PTFE gasket seal, and a 1mm (1000 micron) stainless steel screen for effective filtration. It includes PN16 flanged ends and is rated for up to 16 bar at 30°C, with a broad operating temperature range of -25°C to 200°C.

Key Features:

• Stainless steel 316 (CF8M) body and cap
• 1mm (1000 micron) stainless steel 316 filter screen (2000 micron on DN65 – DN100)
• PTFE gasket for enhanced chemical resistance
• PN16 Flanged ends to BS EN 1092-1
• Compact Y-pattern design for efficient debris capture
• Pressure rated to 20 bar (at up to 30°C)
• Operating temperature range: -25°C to 200°C
• Available in sizes 1/4″ to 4″ NB

Ideal for protecting valves, pumps, meters, and other sensitive equipment in industrial and commercial fluid systems.
