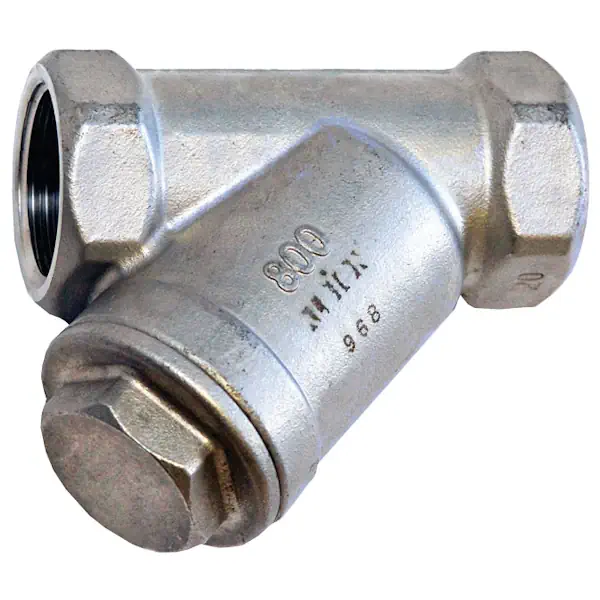

Albion Art968 Stainless Steel 316 Y-Strainer (PN55)

Albion Art968 Stainless Steel Y-Strainer

The Albion Art968 is a durable Y-pattern strainer designed to protect downstream equipment by removing unwanted debris such as dirt, scale, and particulates from fluid systems. Its compact design, high pressure rating, and stainless steel construction make it suitable for use in water, oil, gas, and semi-aggressive chemical applications.

This strainer features a stainless steel 316 (CF8M) body and cap with a PTFE gasket seal, and a 1mm (1000 micron) stainless steel screen for effective filtration. It includes BSPP parallel threaded ends to ISO 7/1 and is rated for up to 55 bar at 20°C, with a broad operating temperature range of -25°C to 180°C.

Key Features:

• Stainless steel 316 (CF8M) body and cap
• 1mm (1000 micron) stainless steel 316 filter screen
• PTFE gasket for enhanced chemical resistance
• Female BSPP parallel threaded ends (ISO 7/1)
• Compact Y-pattern design for efficient debris capture
• Pressure rated to 55 bar (at up to 20°C)
• Operating temperature range: -25°C to 180°C
• Available in sizes 1/4″ to 4″ NB

Ideal for protecting valves, pumps, meters, and other sensitive equipment in industrial and commercial fluid systems.
