Albion Art966 Stainless Steel 316 Spring Check Valve (PN82)

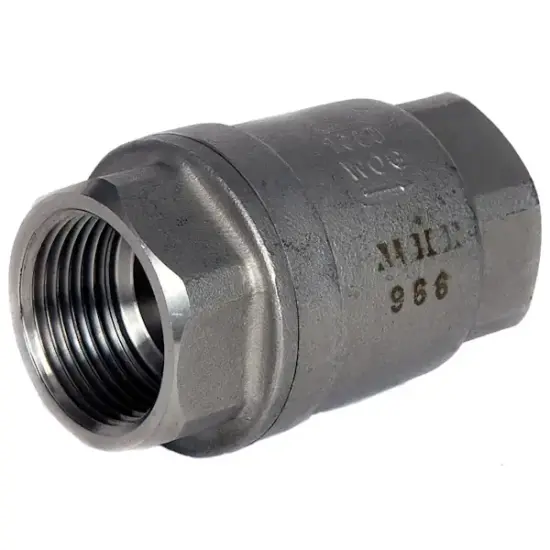

Albion Art966 Stainless Steel Spring Check Valve

The Albion Art966 is a high-performance stainless steel spring check valve designed for gas, oil, water, and other fluid systems across industrial, commercial, and residential applications. Its compact design features a spring-assisted metal seat for reliable backflow prevention, even in vertical installations.

Manufactured with a stainless steel 316 (CF8M) body, disc, and spring, and sealed using a PTFE gasket, the Art966 offers exceptional corrosion resistance and robust performance. It features female BSP parallel threaded ends to ISO 7/1 and is ATEX approved for use in hazardous environments. Pressure ratings vary by size, up to 82 bar, with an operating temperature range of -25°C to 180°C.

Key Features:

• Stainless steel 316 (CF8M) body, cap, disc, and spring
• Metal seat with PTFE gasket sealing
• Spring-loaded mechanism for fast and consistent closure
• Female BSP parallel threaded ends to ISO 7/1
• ATEX approved for use in explosive environments
• Pressure rated to:
  • 82 bar (sizes 1/4″ to 1″)
  • 69 bar (sizes 1 1/4″ to 1 1/2″)
  • 62 bar (sizes 2″ to 3″)
• Operating temperature range: -25°C to 180°C
• Available in sizes 1/4″ to 3″ NB

Ideal for fluid handling systems requiring compact, corrosion-resistant check valves with high pressure ratings and dependable sealing under varying flow conditions.
