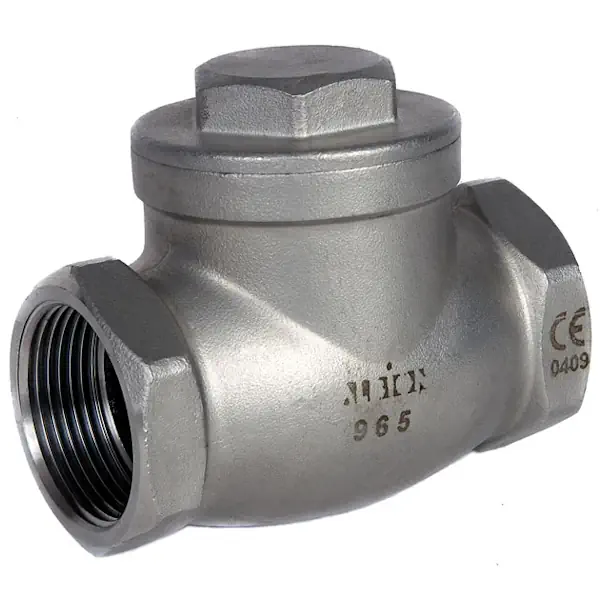

Albion Art965 Stainless Steel 316 Swing Check Valve (PN16)

Albion Art965 Stainless Steel Swing Check Valve

The Albion Art965 is a compact swing check valve designed to prevent reverse flow in low to medium pressure systems. Manufactured from stainless steel 316 (CF8M), it offers excellent resistance to corrosion and wear, making it suitable for a wide range of industrial and commercial applications.

This valve features a stainless steel swing disc with metal seating, female BSPP parallel threaded ends to ISO 7/1, and a PTFE body gasket for added chemical resistance. It is ATEX approved for use in hazardous environments, pressure rated to 16 bar at up to 30°C, and suitable for operating temperatures from -25°C to 180°C.

Key Features:

• Stainless steel 316 (CF8M) body, cap, and disc
• Metal seat for durable and reliable sealing
• Female BSPP parallel threaded ends (ISO 7/1)
• PTFE gasket for improved chemical resistance
• Swing-type check mechanism for low-resistance flow
• ATEX approved for use in hazardous areas
• Pressure rated to 16 bar (at up to 30°C)
• Operating temperature range: -25°C to 180°C
• Available in sizes 1/4″ to 2″ NB

Ideal for use in water, air, oil, and chemical systems where space-saving installation and corrosion resistance are key considerations.
