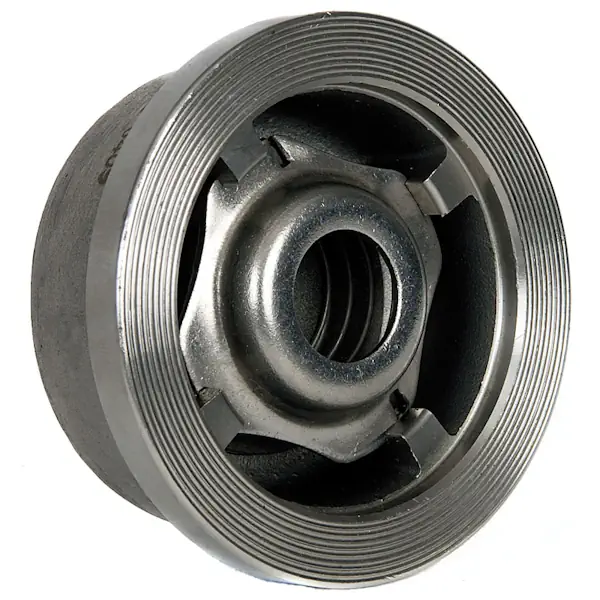

Albion Art964 Stainless Steel Wafer Spring Check Valve
The Albion Art964 is a compact, high-performance spring check valve designed to prevent reverse flow in a wide range of demanding fluid handling applications. Manufactured entirely from stainless steel 316 (CF8M), it features a wafer pattern body with a metal seat for robust sealing and long-term durability.
This valve is suitable for installation between PN10, PN16, and PN40 flanges to BS EN 1092-1, as well as ASME Class 150 and 300 flanges to B16.5. With a spring-assisted closure for fast and reliable shut-off, the Art964 is ATEX approved and pressure rated up to 40 bar, with a temperature operating range of -25°C to 180°C.
Key Features:
- Stainless steel 316 (CF8M) body, disc, and spring
- Wafer pattern design for compact installation
- Metal seat for high-integrity sealing under reverse flow
- Fits PN10/16/40 (BS EN 1092-1) and Class 150/300 (ASME B16.5) flanges
- Spring-assisted closure for fast and effective backflow prevention
- ATEX approved for hazardous environments
- Pressure rated up to 40 bar
- Operating temperature range: -25°C to 180°C
- Available in sizes 1/2″ (DN15) to 4″ (DN100)
An excellent choice for water treatment, chemical processing, and general industrial use where compact dimensions, corrosion resistance, and reliable performance under high pressure are essential.
