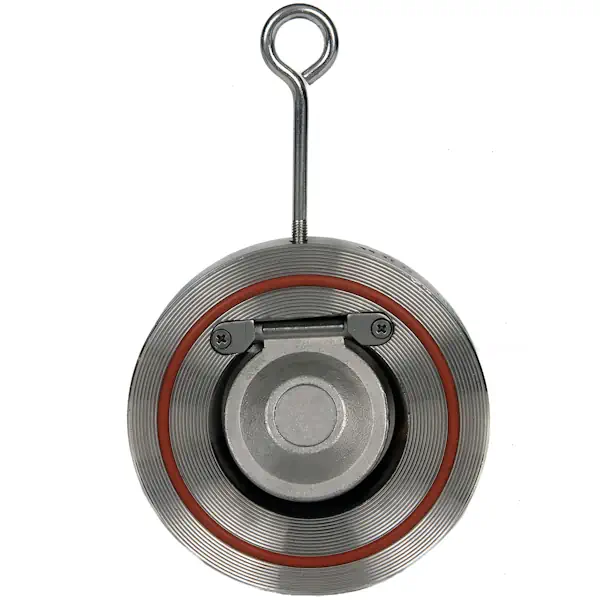

Albion Art963 Stainless Steel Wafer Check Valve
The Albion Art963 is a compact, single-disc wafer check valve designed for efficient backflow prevention in horizontal or upward vertical flow installations. Manufactured from stainless steel 316 (CF8M), this valve offers excellent corrosion resistance and reliability across a wide range of industrial and commercial applications.
Suitable for installation between PN16 flanges to BS EN 1092-1 or Class 150 flanges to ASME B16.5, the Art963 features FKM (Viton) seals and is ATEX approved for use in potentially explosive environments. It is pressure rated to 16 bar at up to 30°C, with a full operating temperature range of -25°C to 180°C.
Key Features:
- Wafer pattern single-disc check valve for compact installation
- Stainless steel 316 (CF8M) body and disc
- FKM (Viton) seat and body seals for chemical and temperature resistance
- Fits PN16 (BS EN 1092-1) and Class 150 (ASME B16.5) flanges
- Suitable for horizontal or upward vertical flow orientation
- ATEX approved for hazardous area use
- Pressure rated to 16 bar (up to 30°C)
- Operating temperature range: -25°C to 180°C
- Available in sizes 2″ (DN50) to 12″ (DN300)
An ideal solution for compact backflow prevention in HVAC, water treatment, process, and chemical systems, especially where space and flow direction flexibility are key considerations.
