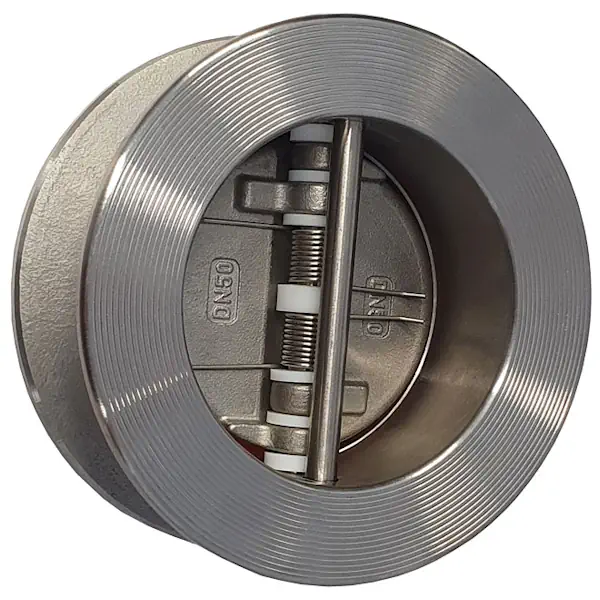

Albion Art962 Stainless Steel Dual Plate Wafer Check Valve
The Albion Art962 is a compact and corrosion-resistant dual plate wafer check valve manufactured from stainless steel CF8M. Designed to prevent backflow in a wide range of fluid systems, it features a spring-assisted closing mechanism and a wafer pattern body for easy installation between various flange types.
Compatible with PN10, PN16, PN25, and PN40 flanges to BS EN 1092-1, as well as ASME Class 150 and 300 flanges to B16.5, the Art962 includes a stainless steel disc and internal components, along with an FKM (Viton) seat for excellent chemical and temperature resistance. It is pressure rated to 40 bar at up to 40°C and operates across a temperature range of -25°C to 180°C.
Key Features:
- Stainless steel CF8M dual plate (spring-loaded) check valve
- Wafer pattern body for compact installation
- Fits PN10/16/25/40 (BS EN 1092-1) and Class 150/300 (ASME B16.5) flanges
- Stainless steel disc and internal components
- FKM (Viton) seat for reliable sealing and chemical resistance
- Pressure rated to 40 bar (at up to 40°C)
- Operating temperature range: -25°C to 180°C
- Available in sizes 1 1/2″ (DN40) to 12″ (DN300)
Ideal for industrial, commercial, and marine systems where space-saving backflow protection is required with compatibility across a range of flange standards.
