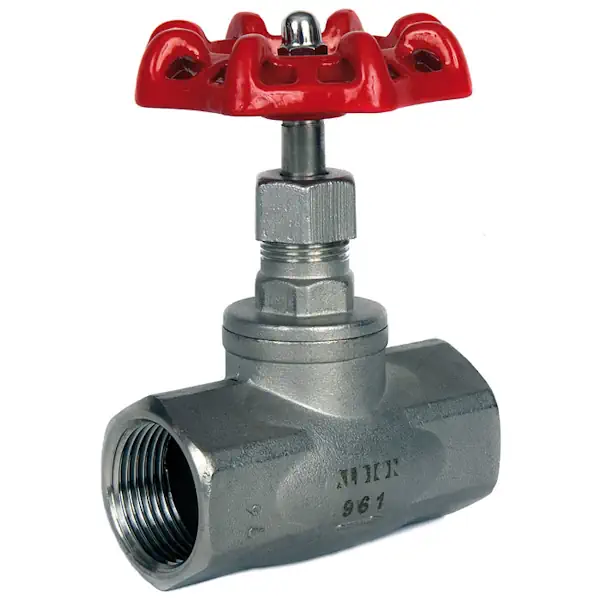

Albion Art961 PN16 Stainless Steel Globe Valve
The Albion Art961 is a robust stainless steel globe valve designed for throttling and isolation duties across a wide range of industrial applications. Manufactured from stainless steel 316 (CF8M), this valve provides excellent corrosion resistance and durability. It features a globe-style internal layout for precise flow regulation, along with PTFE sealing elements for enhanced chemical resistance and thermal stability.
Supplied with female BSPP parallel threaded ends to ISO 7/1, the Art961 is manually operated via a heavy-duty aluminium alloy handwheel. It is ATEX approved for use in hazardous areas, pressure rated to 16 bar at up to 30°C, and operates reliably within a temperature range of -25°C to 180°C.
Key Features:
- Globe valve body in stainless steel 316 (CF8M)
- Female BSPP parallel threaded ends (ISO 7/1)
- Stainless steel 316 stem and packing nut
- Stainless steel 304 gland with PTFE stem packing
- PTFE body gasket for dependable sealing
- Manual operation via aluminium alloy handwheel
- ATEX approved for hazardous environments
- Pressure rated to PN16 (16 bar at up to 30°C)
- Operating temperature range: -25°C to 180°C
Ideal for use in steam, gas, water, oil, and chemical systems where accurate flow regulation, chemical resistance, and ATEX compliance are required.
