Albion Art960 Full Bore Stainless Steel Gate Valve

Brand: Albion Valves
SKU: 31ART960

£18.36£72.76 ex. VAT

About this product

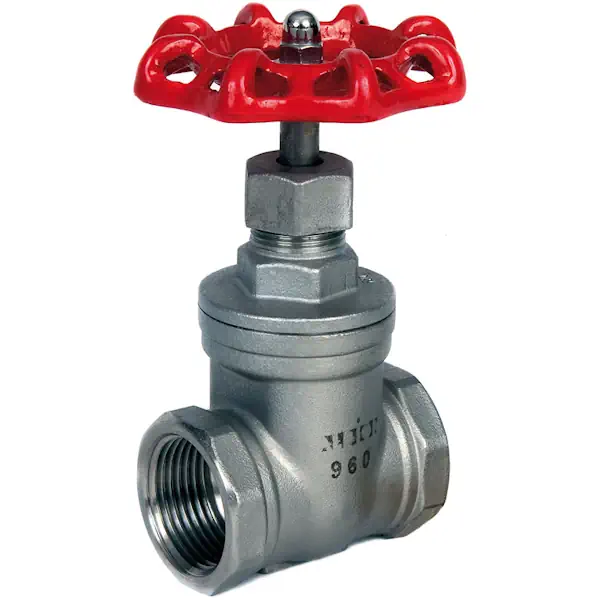

Albion Art960 PN16 Stainless Steel Gate Valve

The Albion Art960 is a full bore stainless steel gate valve designed for isolation duties in demanding fluid handling applications. Constructed from stainless steel 316 (CF8M), it features a corrosion-resistant body and internals, with precision PTFE sealing for long-term performance across a wide range of media, including water, steam, gas, oil, and certain chemicals.

This valve is manually operated via a durable aluminium alloy handwheel and is fitted with female BSPP parallel threaded ends to ISO 7/1. ATEX approved and rated for up to 16 bar at 30°C, the Art960 is suitable for systems operating in temperatures from -25°C to 180°C.

Key Features:

  • Full bore design with stainless steel 316 (CF8M) body and disc
  • Female BSPP parallel threaded ends (ISO 7/1)
  • Stainless steel 316 stem and packing nut (BS 970)
  • Stainless steel 304 gland and PTFE stem packing
  • PTFE body gasket for reliable sealing
  • Manual handwheel operation (aluminium alloy)
  • ATEX approved for use in hazardous environments
  • Pressure rated to 16 bar (at up to 30°C)
  • Operating temperature range: -25°C to 180°C

Ideal for use in industrial and commercial systems requiring corrosion resistance, reliable shut-off, and compliance with ATEX standards. Suitable for steam, air, water, oil, gas, and chemical applications.

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Full Bore Gate Valve

Connections

Female BSPP Parallel Threaded – ISO 7-1

Operation

Manual Handwheel Operated

Body Material

Stainless Steel 316 (CF8M)

Disc Material

Stainless Steel 316 (CF8M)

Stem Material

Stainless Steel 316

Body Gasket Material

PTFE

Stem Gland Material

Stainless Steel 304

Maximum Operating Pressure

16 Bar (Up to 30°C)

Operating Temperature Range

-25°C – 180°C

Approvals

ATEX Approved

Certification Availability

N/A
