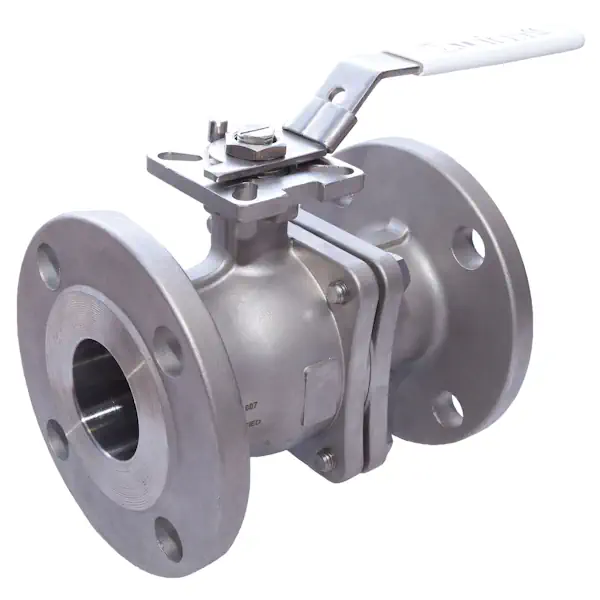

Albion Art958 Stainless Steel Fire Safe Ball Valve (ANSI-150 Flanged)

Brand:	Albion Valves
SKU:	31ART958

£70.90 – £1,013.07 ex. VAT

Valve Size

Clear

About this product

Full bore ball valve with 2-piece body in stainless steel 316 (CF8M)

Class 150 flanged ends to ASME B16.5

Ball made of stainless steel 316 with PTFE ball seats

Stainless steel 316 stem with graphite stem packing

Fire safe valve design with built-in anti-static device

ISO 5211 Direct mount bracket for actuator installation

Valve torque at zero pressure: See datasheet

ATEX Approved and TUV certified to API STD 607

Manual operation via locking lever

Maximum operating pressure: 20 bar at up to 35°C

Operating temperature range: -25°C – 200°C

Weight	N/A
Dimensions	N/A
Brand	Albion Valves
Valve Type	2-Piece Full Bore Ball Valve
Connections	Class 150 Flanged (ANSI/ASME B16.5)
Operation	Manual Locking Lever/Handle Operated
Body Material	Stainless Steel 316 (CF8M)
Ball Material	Stainless Steel 316
Stem Material	Stainless Steel 316
Body Gasket Material	Pure Graphite
Ball Seat Material	PTFE
Stem Packing Material	Pure Graphite
Flange Diameter	See datasheet
Flange PCD	See datasheet
Flange Thickness	See datasheet
Flange Bolt Holes	See datasheet
Approvals	ATEX Approved. TUV certified (API STD 607)
Maximum Operating Pressure	20 bar (Up to 35°C)
Operating Temperature Range	-25 – 200 Degrees C
Additional Information	Built-in anti-static device.
Certification Availability	N/A
