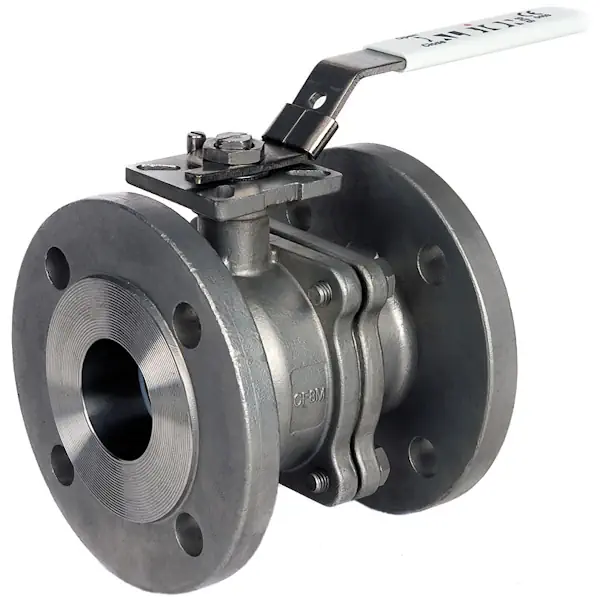

Albion Art926 Full Bore Stainless Steel Ball Valve (PN16/40 Flanged)

Albion Art926 Stainless Steel Flanged Ball Valve – Fire Safe

The Albion Art926 is a high-performance stainless steel ball valve designed for critical isolation duties in hazardous and high-pressure environments. Manufactured from durable CF8M stainless steel with a 2-piece body construction and full bore flow path, it delivers strength, safety, and reliable operation across a wide range of industrial systems.

Available in sizes from 1/2″ to 8″ (DN15 – DN200), the valve features flanged PN40 or PN16 ends (BS EN 1092-1), reinforced PTFE ball seats, and a fire-safe, ATEX-approved design. The locking lever is ISO 5211 direct-mount compatible for actuator integration, and the robust stem assembly includes PTFE packing with a Viton O-ring for secure sealing performance.

Key Features:

• 2-piece CF8M stainless steel body with PTFE gasket
• Full bore design for unrestricted flow
• Stainless steel 316 ball with reinforced (15% graphite) PTFE seats
• Stainless steel 316 stem with PTFE packing and FKM (Viton) O-ring
• Flanged PN40 ends (DN15?DN50), PN16 ends (DN65?DN200) to BS EN 1092-1
• Fire safe and ATEX approved for hazardous environments
• Locking lever with ISO 5211 direct mount pad for actuator fitting
• Pressure rated: 40 bar (up to DN50), 16 bar (DN65?DN200)
• Operating temperature range: -25°C to 200°C (to 180°C for DN125?DN200)

This robust, corrosion-resistant valve is ideally suited for the oil, gas, petrochemical, and chemical processing industries where fire safety, performance, and actuator compatibility are essential.
