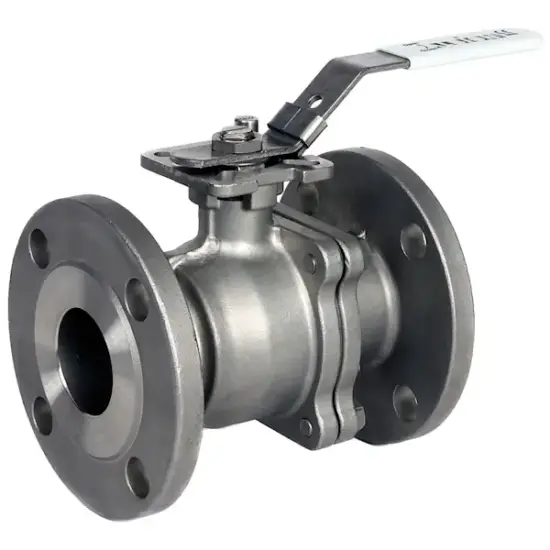

Albion Art928 Full Bore Stainless Steel Ball Valve (ANSI-150 Flanged)

Albion Art928 Stainless Steel Flanged Ball Valve

The Albion Art928 is a high-performance stainless steel ball valve designed for critical isolation duties in hazardous and high-pressure environments. Manufactured from durable CF8M stainless steel with a 2-piece body construction and full bore flow path, it delivers strength, safety, and reliable operation across a wide range of industrial systems.

Available in sizes from 1/2″ to 4″ (DN15 – DN100), the valve features flanged class 150 ends (ASME/ANSI B16.5), reinforced PTFE ball seats, and a fire-safe, ATEX-approved design. The locking lever is ISO 5211 direct-mount compatible for actuator integration, and the robust stem assembly includes PTFE packing with a Viton O-ring for secure sealing performance.

Key Features:

• 2-piece CF8M stainless steel body with PTFE gasket
• Full bore design for unrestricted flow
• Stainless steel 316 ball with reinforced (15% graphite) PTFE seats
• Stainless steel 316 stem with PTFE packing and FKM (Viton) O-ring
• Class 150 flanged ends to ASME/ANSI B16.5
• ATEX approved for hazardous environments
• Locking lever with ISO 5211 direct mount pad for actuator fitting
• Pressure rated: 20 bar (up to 35°C)
• Operating temperature range: -25°C to 200°C

This robust, corrosion-resistant valve is ideally suited for the oil, gas, petrochemical, and chemical processing industries where fire safety, performance, and actuator compatibility are essential.
