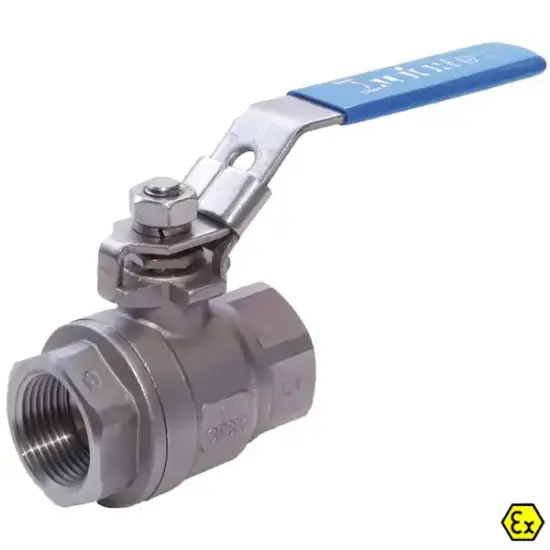

Albion Art912P Full bore stainless steel 316 ball valve with BSPT threads, ATEX approval, locking lever and PN140 pressure rating.

Albion Art912P Full Bore Stainless Steel 2-Piece Ball Valve (PN140)

Brand: Albion Valves
SKU: 31ART912P

£10.65 – £83.10 ex. VAT

About this product

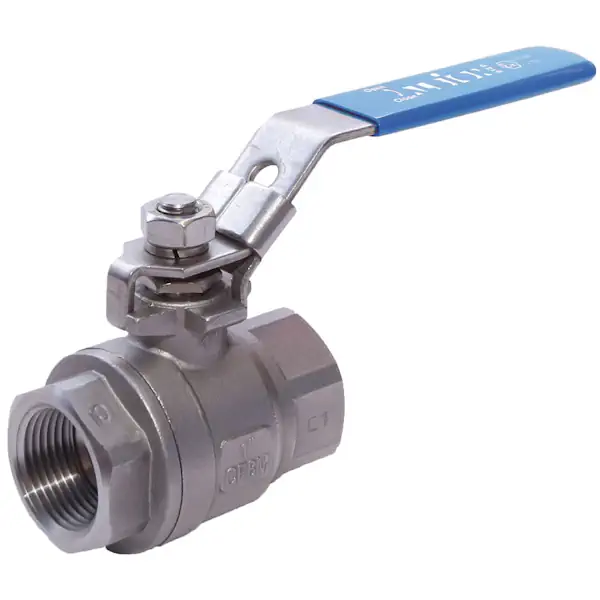

Albion Art912P Full Bore BSP Threaded Stainless Steel Ball Valve

The ART 912P is a high-performance 2-piece full bore ball valve with a stainless steel 316 body and a reinforced PTFE seat. It features female BSP taper threaded ends conforming to ISO 7/1 and includes a manual locking lever as standard. ATEX approved, it operates within a temperature range of -25°C to 200°C and is rated for pressures up to 140 bar

Key Features:

  • Stainless steel 316 body, ball, and stem
  • Female BSPT taper threaded ends (ISO 7/1)
  • Reinforced PTFE seat, PTFE stem packing & washers
  • ATEX approved, locking lever included
  • 140 bar pressure rated (Up to 35°C)
  • -25°C – 200°C Operating temperature range
Datasheet download

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

2-Piece Full Bore Ball Valve
Connections

Female BSPT Taper Threaded – ISO 7-1
Operation

Manual Locking Lever/Handle Operated
Body Material

Stainless Steel 316 (CF8M)
Ball Material

Stainless Steel 316
Stem Material

Stainless Steel 316
Body Gasket Material

PTFE
Ball Seat Material

PTFE + 15% Graphite
Stem Packing Material

PTFE
Maximum Operating Pressure

140 bar (up to 35°C)
Operating Temperature Range

-25°C – 200°C
Approvals

ATEX Approved
Certification Availability

N/A
